HPE NW 8100-40XT8XF4C BF3F2ACBDL US EN 7256700
SKU
7256700
CA$42,916.00

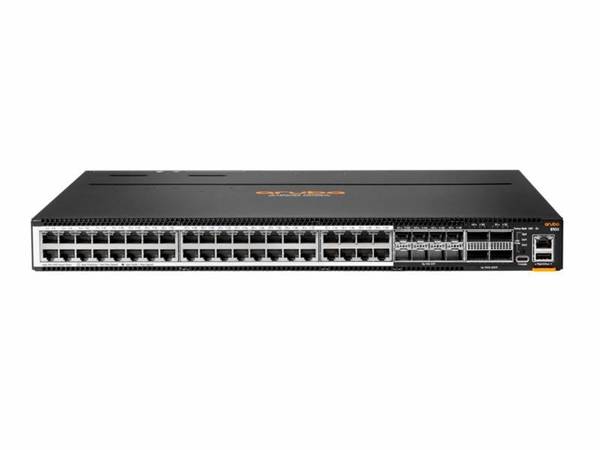

Switch - HPE Aruba Networking CX 8100 Switch Series - 1U - Wired - 100Gbps - Networking / Ports Qty: 56 - Gigabit Ethernet - Quad-Core - 16GB RAM - 32GB Flash Memory - 100-127V, 200-240VAC - Limited Lifetime Warranty
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: HPE Aruba Networking CX 8100 Switch Series Form Factor: 1U Connectivity Technology: Wired Data Transfer Rate: 100 Gbps Networking / Ports Qty: 56 Data Link Protocol: Gigabit Ethernet Processor / Type: Quad-Core RAM / Total Installed Size: 16 GB Flash Memory / Installed Size: 32 GB Networking Compliant Standards: IEEE 802.1AB, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p Power / Device Type: Power Supply Media Layer Supported: Layer 2 and Layer 3 Power Consumption Operational: 120 Watt Max Power Consumption: 500 Watt Power / Voltage Required: 100-127V, 200-240VAC Features: High availability with industry leading VSX redundancy, and redundant power supplies and fans. Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments - Network
Power Over Ethernet (PoE) Support: None PoE Power Consumption: None MAC Address Table Size: 147456 Jumbo Frame Support: 9K bytes Remote Management Protocol: SNMP; IPv6; IPv4; DHCP Routing Protocol: RIPv2, RIPng Authentication Method: RADIUS, TACACS+ Interfaces: 40 ports of 100M/1/2.5/5/10 GbE, 8 ports of 1/GbE/10GbE (SFP/SFP+), 4 ports of 40GbE/100GbE (QSFP+/QSFP28), RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A - Interfaces / Ports
Interfaces: 40 ports of 100M/1/2.5/5/10 GbE, 8 ports of 1/GbE/10GbE (SFP/SFP+), 4 ports of 40GbE/100GbE (QSFP+/QSFP28), RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A - Dimensions&Miscellaneous
Width: 17.4 Inch Depth: 16 Inch Height: 1.73 Inch Weight: 18.9 lbs. - Service&Support
Service & Support Type: Limited Lifetime Warranty - Special Feature
Min Operating Temperature: 0 Celsius Max Operating Temperature: 40 Celsius Min Storage Temperature: -40 Celsius Max Storage Temperature: 70 Celsius COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-R9W93A#ABA |
| MFG Part# | R9W93A#ABA |
| Flash Memory / Installed Size | 32 GB |
| Network Device Type | Switch |
| RAM / Total Installed Size | 16 GB |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Gbps |
| Form Factor | 1U |
| Processor / Type | Quad-Core |
| Networking / Ports Qty | 56 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | DHCP, IPv4, IPv6, SNMP |
