HPE NW CW 5960 32XQSFP-DD SW 7264292
SKU
7264292
CA$151,647.00

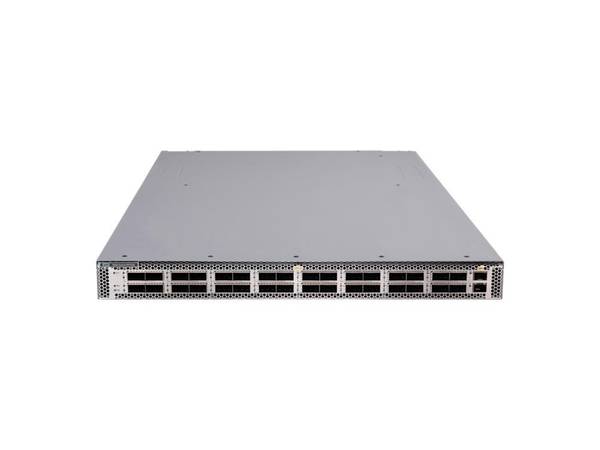

HPE NETWORKING COMWARE 5960 32 PORT 400G QSFP-DD DATA CENTER SWITCH
Category: Hubs & Switches
- Primary Information
Product Description: HPE Networking Comware 5960 32 Port 400G QSFP-DD Data Center Switch - switch - horizontal surface mounting only - 32 ports - managed - rack-mountable Device Type: Switch - 32 ports - L4 - managed Enclosure Type: Front to back airflow rack-mountable 1U Subtype: 400 Gigabit Ethernet Ports: 32 x 400 Gigabit QSFP-DD + 2 x 1 Gigabit / 10 Gigabit SFP+ Performance: Latency: 1.2 µs ¦ Switching capacity: 12.8 Tbps ¦ Forwarding capacity: 353 Bps Capacity: IPv4 routing table entries: 800000 ¦ IPv6 routing table entries: 500000 ¦ VLAN table: 4094 MAC Address Table Size: 16K entries Jumbo Frame Support: Yes Routing Protocol: VXLAN, OSPF, OSPFv2, OSPFv3, BGP, IS-IS, ECMP, VRRP, BGP-4+, IS-ISv6 Remote Management Protocol: CLI, SNMP, Telnet, NETCONF Features: 6 fan trays slots, PFC, DCBX support, ECN, EVPN, RDMA support, RoCE, sFlow, NetStream, ARP support, VPLS, CAR, traffic mirroring, WRED, LACP support, AAA, LLDP support, LLDP-MED, QoS, layer 2 switching, layer 3 switching, layer 4 switching Compliant Standards: IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1p Power Redundancy: Optional Dimensions (WxDxH): 17.3 in x 26 in x 1.7 in Weight: 26.9 lbs System Requirements: Comware v9 Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Switch - 32 ports - L4 - managed Enclosure Type: Front to back airflow rack-mountable 1U Subtype: 400 Gigabit Ethernet Ports: 32 x 400 Gigabit QSFP-DD + 2 x 1 Gigabit / 10 Gigabit SFP+ Performance: Latency: 1.2 µs ¦ Switching capacity: 12.8 Tbps ¦ Forwarding capacity: 353 Bps Capacity: IPv4 routing table entries: 800000 ¦ IPv6 routing table entries: 500000 ¦ VLAN table: 4094 MAC Address Table Size: 16K entries Jumbo Frame Support: Yes Routing Protocol: VXLAN, OSPF, OSPFv2, OSPFv3, BGP, IS-IS, ECMP, VRRP, BGP-4+, IS-ISv6 Remote Management Protocol: CLI, SNMP, Telnet, NETCONF Encryption Algorithm: SSL, PKI Authentication Method: RADIUS, HWTACACS, Secure Shell v.2 (SSH2) Features: 6 fan trays slots, PFC, DCBX support, ECN, EVPN, RDMA support, RoCE, sFlow, NetStream, ARP support, VPLS, CAR, traffic mirroring, WRED, LACP support, AAA, LLDP support, LLDP-MED, QoS, layer 2 switching, layer 3 switching, layer 4 switching Compliant Standards: IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1p Processor: D-1627: 2.9 GHz RAM: 16 GB DDR4 SDRAM Flash Memory: 240 GB - Expansion / Connectivity
Interfaces: 32 x 400Gbit LAN QSFP-DD ¦ 2 x 1/10Gbit LAN SFP+ ¦ 1 x management RJ-45 out-of-band network management ¦ 1 x console ¦ 1 x USB 2.0 - Power
Power Device: Internal power supply (not installed) - hot-plug Max Supported Qty: 2 Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply) - Miscellaneous
Included Accessories: Rack mount kit Compliant Standards: UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, AS/NZS 60950-1, FDA 21 CFR Subchapter J, GB 4943.1, UL 62368-1, IEC 62368-1, EN 62368-1, AS/NZS 62368-1, FCC Part 15 Subpart B:2020 Class A, ICES-003 Class A, VCCI Class A, CISPR 32 Class A, EN 55032 Class A, AS/NZS CISPR 32 Class A, CISPR 35, EN 55035, EN 61000-3-2, EN 61000-3-3, ETSI EN 300 386, GB/T 9254, YD/T 993, CAN/CSA-C22.2 No. 62368-1 - Software / System Requirements
OS Required: Comware v9 - Dimensions & Weight
Width: 17.3 in Depth: 26 in Height: 1.7 in Weight: 26.9 lbs - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) Humidity Range Storage: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-R9Y13A |
| MFG Part# | R9Y13A |
| Device Type | Switch - 32 ports - L4 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Remote Management Protocol | CLI, NETCONF, SNMP, Telnet |
| Encryption Algorithm | PKI, SSL |
