MELLANOX SPECTRUM BASED 11842457
SKU
11842457
CA$33,387.00

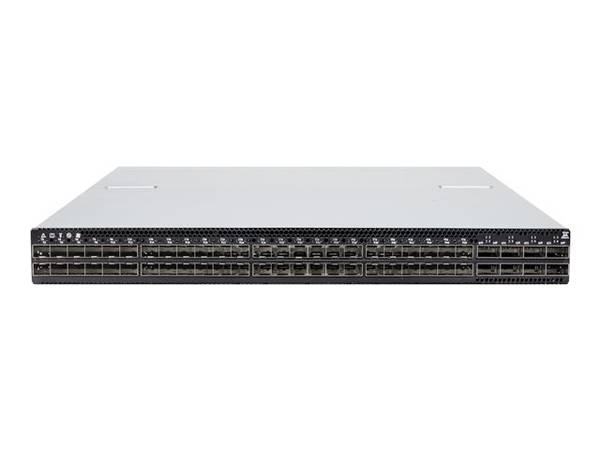

NVIDIA MSN2410-CBBRC Spectrum 25GbE/100GbE 1U Open Ethernet Switch
Category: Hubs & Switches
- Primary Information
Product Description: Mellanox Spectrum SN2410 - switch - 56 ports - managed - rack-mountable Device Type: Switch - 56 ports - L3 - managed Enclosure Type: Back to front airflow rack-mountable 1U Subtype: 100 Gigabit Ethernet Ports: 48 x 25 Gigabit SFP28 + 8 x 100 Gigabit QSFP28 Performance: Switching capacity: 4 Tbps ¦ Latency: 300 µs Jumbo Frame Support: 9216 bytes Routing Protocol: BGP-4, VRRP, OSPFv2, static IPv4 routing, static IPv6 routing Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, SSH-2, CLI Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, LACP support, LLDP support, DHCP relay, non blocking ports, PFC Compliant Standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz Power: AC 120/230 V Power Redundancy: Yes Dimensions (WxDxH): 17.2 in x 17.2 in x 1.7 in Weight: 18.78 lbs - General
Device Type: Switch - 56 ports - L3 - managed Enclosure Type: Back to front airflow rack-mountable 1U Subtype: 100 Gigabit Ethernet Ports: 48 x 25 Gigabit SFP28 + 8 x 100 Gigabit QSFP28 Performance: Switching capacity: 4 Tbps ¦ Latency: 300 µs Jumbo Frame Support: 9216 bytes Routing Protocol: BGP-4, VRRP, OSPFv2, static IPv4 routing, static IPv6 routing Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, SSH-2, CLI Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, LACP support, LLDP support, DHCP relay, non blocking ports, PFC Compliant Standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz Processor: 1 x Intel Celeron: 1.4 GHz RAM: 8 GB - Expansion / Connectivity
Interfaces: 48 x 25Gbit LAN SFP ¦ 2 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 ¦ 8 x 100Gbit LAN QSFP28 ¦ 1 x USB - Power
Power Device: Internal power supply - hot-plug Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Power Redundancy Scheme: 1+1 Voltage Required: AC 120/230 V - Miscellaneous
Included Accessories: Rack mount kit Rack Mounting Kit: Included Compliant Standards: VCCI, FCC, RoHS, ICES, cTUVus, RCM, CU - Software / System Requirements
Software Included: Open Network Install Environment - Dimensions & Weight
Width: 17.2 in Depth: 17.2 in Height: 1.7 in Weight: 18.78 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 85% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F Humidity Range Storage: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | NVIDIA |
|---|---|
| UNSPSC | 43222612 |
| Part# | MNX-MSN2410-CBBRC |
| MFG Part# | MSN2410-CBBRC |
| UPC | 7290108483970 |
| Device Type | Switch - 56 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Remote Management Protocol | CLI, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet |
