MILESTONE MIDDLE ATLANTIC M 1U 16A 208V 8 C13 L6-20P 6901225
SKU
6901225
- Primary Information

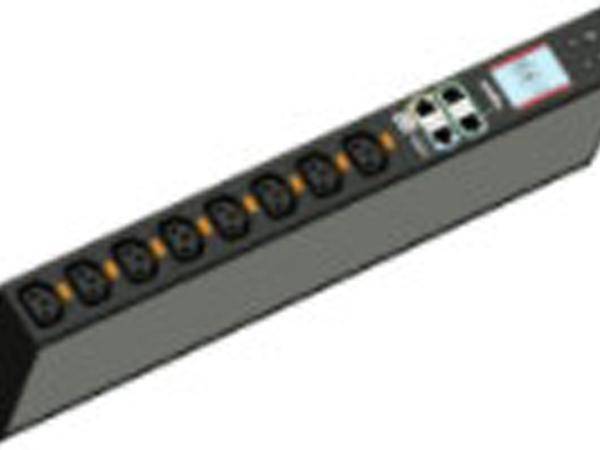

Product Description: Legrand Rack PDU, Network Metered, 1U, 16A, 208V, (8) C13, L6-20P Cord - power distribution unit - 3800 VA Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 1U Input Wiring: 1-phase 3 Wire Input Voltage: AC 208 V Output Voltage: AC 208 V Power Capacity: 3800 VA Power Capacity Details: 3.2 kVA at 200 V, 3.8 kVA at 240 V Input Connectors: 1 x power NEMA L6-20P Output connectors: 8 x power IEC 60320 C13 12 A Networking: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP Color: Black, silver Dimensions (WxDxH): 17.2 in x 5.2 in x 1.7 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 1U Cord Length: 10 ft Color: Black, silver - Power Device
Input Voltage: AC 208 V Input Voltage Range: AC 200 - 240 V Input Wiring: 1-phase 3 Wire Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L6-20P Power Output Connectors Details: 8 x power IEC 60320 C13 12 A Output Voltage: AC 208 V Max Electric Current: 20 A Power Capacity: 3800 VA Power Capacity Details: 3.2 kVA at 200 V, 3.8 kVA at 240 V - Networking
Remote Management Interface: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP - Expansion / Connectivity
Interfaces: 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ Management (RS-232) ¦ 1 x USB - 4 pin USB Type B - Miscellaneous
Cables Included: Power cable 10 ft Features: Splash-resistant, rear feed, LCD display, current meter, overload protection, horizontal orientation, active power meter, real power meter, energy meter, power factor meter, monitored, locking C13 connector, load monitoring, user defined notifications, rotatable cord, Hydraulic-Magnetic breakers, voltage meter, environmental sensor ready Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Max Operating Temperature: 113 °F Humidity Range Operating: 85% - Dimensions & Weight
Width: 17.2 in Depth: 5.2 in Height: 1.7 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121017 |
| Part# | MAA-LP-42211 |
| MFG Part# | LP-42211 |
| UPC | 662875019893 |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black, silver |
| Remote Management Protocol | HTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet |
