MILESTONE MIDDLE ATLANTIC SW 0U 16A 208V 21 C13 3 C19 L6-20P 6901234

SKU
6901234
CA$1,662.81
  • Primary Information

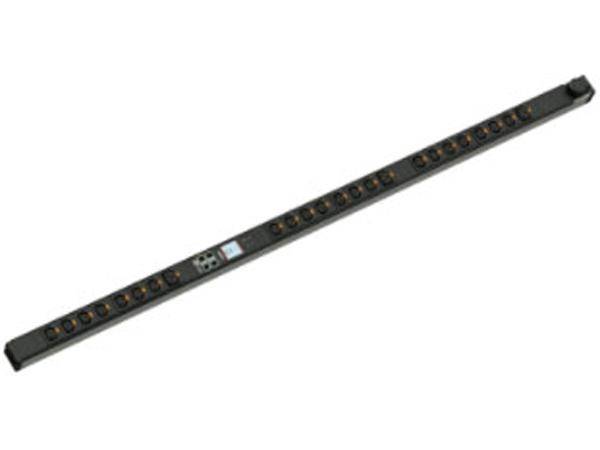

    Product Description: Legrand Rack PDU, Network Switch, ZeroU, 16A, 208V, (21) C13 & (3) C19, L6-20P Cord - power distribution unit - 3800 VA
    Device Type: Power distribution unit - rack-mountable
    Cord Length: 10 ft
    Rack Size: 0U
    Weight: 7.72 lbs
    Input Wiring: 1-phase 3 Wire
    Input Voltage: AC 208 V
    Output Voltage: AC 208 V
    Power Capacity: 3800 VA
    Power Capacity Details: 3.2 kVA at 200 V, 3.8 kVA at 240 V
    Input Connectors: 1 x power NEMA L6-20P
    Output connectors: 21 x power IEC 60320 C13 12 A ¦ 3 x power IEC 60320 C19 16 A
    Networking: Ethernet 10/100, RS-232
    Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
    Color: Black, silver
    Dimensions (WxDxH): 2 in x 2 in x 60.6 in
    Manufacturer Warranty: 2-year warranty
  • General
    Device Type: Power distribution unit - rack-mountable
    Height (Rack Units): 0U
    Cord Length: 10 ft
    Color: Black, silver
  • Power Device
    Input Voltage: AC 208 V
    Input Voltage Range: AC 200 - 240 V
    Input Wiring: 1-phase 3 Wire
    Frequency Required: 50/60 Hz
    Input Connectors: 1 x power NEMA L6-20P
    Power Output Connectors Details: 21 x power IEC 60320 C13 12 A ¦ 3 x power IEC 60320 C19 16 A
    Output Voltage: AC 208 V
    Max Electric Current: 20 A
    Power Capacity: 3800 VA
    Power Capacity Details: 3.2 kVA at 200 V, 3.8 kVA at 240 V
  • Networking
    Remote Management Interface: Ethernet 10/100, RS-232
    Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
  • Expansion / Connectivity
    Interfaces: 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ Management (RS-232) ¦ 1 x USB - 4 pin USB Type B
  • Miscellaneous
    Cables Included: Power cable 10 ft
    Features: Splash-resistant, bottom-front feed, LCD display, current meter, vertical orientation, horizontal orientation, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, monitored, locking C13 connector, locking C19 connector, rotatable cord, Hydraulic-Magnetic breakers, voltage meter, environmental sensor ready, delayed power sequencing, outlet use management, advanced load monitoring
    Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21
  • Manufacturer Warranty
    Service & Support: Limited warranty - 2 years
  • Environmental Parameters
    Max Operating Temperature: 113 °F
    Humidity Range Operating: 85%
  • Dimensions & Weight
    Width: 2 in
    Depth: 2 in
    Height: 60.6 in
    Weight: 7.72 lbs
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 39121017
BRANDSMIDDLE ATLANTIC
UNSPSC39121017
Part#MAA-LP-62201
MFG Part#LP-62201
UPC662875015628
Device TypePower distribution unit - rack-mountable
ColorBlack, silver
Remote Management ProtocolHTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet
