MILESTONE MIDDLE ATLANTIC SW 0U 24A 208V 21 C13 3 C19 L6-30P 6901236
SKU
6901236
- Primary Information

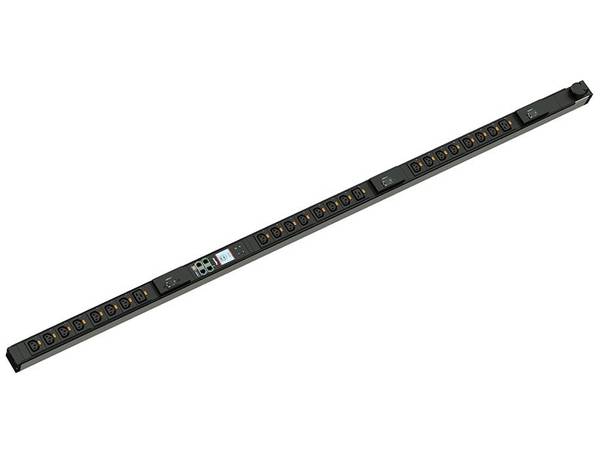

Product Description: Legrand Rack PDU, Network Switch, ZeroU, 24A, 208V, (21) C13 & (3) C19, L6-30P Cord - power distribution unit - 5800 VA Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 9.92 lbs Input Wiring: 1-phase 3 Wire Input Voltage: AC 208 V Output Voltage: AC 208 V Power Capacity: 5800 VA Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V Input Connectors: 1 x power NEMA L6-30P Output connectors: 21 x power IEC 60320 C13 12 A ¦ 3 x power IEC 60320 C19 16 A Networking: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP Color: Black, silver Dimensions (WxDxH): 2 in x 2 in x 70.1 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft Color: Black, silver - Power Device
Input Voltage: AC 208 V Input Voltage Range: AC 200 - 240 V Input Wiring: 1-phase 3 Wire Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L6-30P Power Output Connectors Details: 21 x power IEC 60320 C13 12 A ¦ 3 x power IEC 60320 C19 16 A Output Voltage: AC 208 V Max Electric Current: 30 A Power Capacity: 5800 VA Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V - Networking
Remote Management Interface: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP - Expansion / Connectivity
Interfaces: 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ Management (RS-232) ¦ 1 x USB - 4 pin USB Type B - Miscellaneous
Cables Included: Power cable 10 ft Features: Splash-resistant, bottom-front feed, LCD display, current meter, vertical orientation, horizontal orientation, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, monitored, locking C13 connector, locking C19 connector, rotatable cord, Hydraulic-Magnetic breakers, voltage meter, environmental sensor ready, delayed power sequencing, outlet use management, advanced load monitoring, 3 x 20 A circuit breakers, 3 x LEJBXA66-20 overload protection Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Max Operating Temperature: 113 °F Humidity Range Operating: 85% - Dimensions & Weight
Width: 2 in Depth: 2 in Height: 70.1 in Weight: 9.92 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121017 |
| Part# | MAA-LP-62300 |
| MFG Part# | LP-62300 |
| UPC | 662875015680 |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black, silver |
| Remote Management Protocol | HTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet |
