MILESTONE MIDDLE ATLANTIC SW 2U 24A 120V 16 5-20R L5-30P 6901233
SKU
6901233
- Primary Information

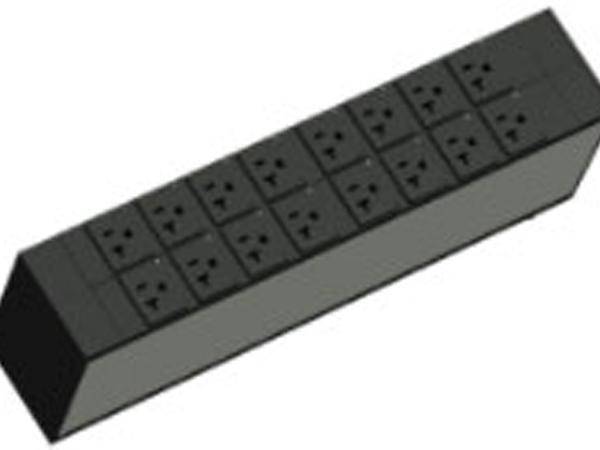

Product Description: Legrand Rack PDU, Network Switched, 2U, 24A, 120V, (16) 5-20R, L5-30P Cord - power distribution unit - 2900 VA Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 2U Input Wiring: 1-phase 3 Wire Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 2900 VA Power Capacity Details: 2.4 kVA at 100 V, 2.9 kVA at 120 V Input Connectors: 1 x power NEMA L5-30P Output connectors: 16 x power NEMA 5-20R 16 A Networking: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP Color: Black, silver Dimensions (WxDxH): 17.2 in x 5.2 in x 3.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 2U Cord Length: 10 ft Color: Black, silver - Power Device
Input Voltage: AC 120 V Input Voltage Range: AC 100 - 120 V Input Wiring: 1-phase 3 Wire Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L5-30P Power Output Connectors Details: 16 x power NEMA 5-20R 16 A Output Voltage: AC 120 V Max Electric Current: 30 A Power Capacity: 2900 VA Power Capacity Details: 2.4 kVA at 100 V, 2.9 kVA at 120 V Circuit Protection: Circuit breaker - Networking
Remote Management Interface: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP - Expansion / Connectivity
Interfaces: 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ Management (RS-232) ¦ 1 x USB - 4 pin USB Type B - Miscellaneous
Cables Included: Power cable 10 ft Features: Splash-resistant, rear feed, LCD display, current meter, horizontal orientation, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, monitored, rotatable cord, Hydraulic-Magnetic breakers, voltage meter, environmental sensor ready, 2 x 20 A circuit breakers, delayed power sequencing, outlet use management, advanced load monitoring, 2 x LEGBXA6 overload protection Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Max Operating Temperature: 113 °F Humidity Range Operating: 85% - Dimensions & Weight
Width: 17.2 in Depth: 5.2 in Height: 3.5 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121017 |
| Part# | MAA-LP-61320 |
| MFG Part# | LP-61320 |
| UPC | 662875015321 |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black, silver |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet |
