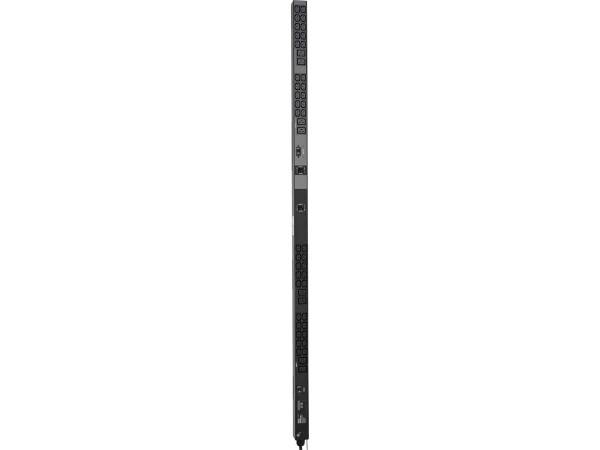

TRIPP LITE 5.8KW SINGLE-PHASE METERED PDU, 208/240V 5523801
SKU
5523801
CA$1,294.80
Only 2 left
Tripp Lite series 5.8kW Single-Phase Local Metered PDU, 200-240V Outlets (8 C19 and 40 C13), L6-30P, 10 ft. (3.05 m) Cord, 0U Vertical, TAA, 70 in - Digital Meters Help Prevent Overloads;Distributes Plenty of Single-Phase Power;Connects to AC Power Source;Easy to Mount With or Without Tools
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series PDU Metered Vertical 5.8kw 208/240V 8 C19 40 C13 L6-30P 0U TAA - power distribution unit - 5.8 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 12.35 lbs Input Voltage: AC 208 V Output Voltage: AC 200-240 V Power Capacity: 5.8 kW Input Connectors: 1 x power NEMA L6-30 Output connectors: 40 x power IEC 60320 C13 ¦ 8 x power IEC 60320 C19 TAA Compliant: TAA Compliant Dimensions (WxDxH): 2.7 in x 2.5 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft - Power Device
Input Voltage: AC 208 V Frequency Provided: 50/60 Hz Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L6-30 Power Output Connectors Details: 40 x power IEC 60320 C13 ¦ 8 x power IEC 60320 C19 Output Voltage: AC 200-240 V 50/60 Hz Max Electric Current: 30 A Power Capacity: 5.8 kW Circuit Protection: Circuit breaker - Miscellaneous
Cables Included: Power cable 10 ft Rack Mounting Kit: Included Features: LCD display, voltage monitoring, current meter, LED indicators, vertical orientation, AC frequency monitoring Compliant Standards: FCC Class A certified, NOM, RoHS, UL 60950-1 TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 2.7 in Depth: 2.5 in Height: 70 in Weight: 12.35 lbs - Dimensions & Weight (Shipping)
Shipping Width: 9.6 in Shipping Depth: 6.9 in Shipping Height: 75.9 in Shipping Weight: 16.98 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMV30HV2 |
| MFG Part# | PDUMV30HV2 |
| UPC | 37332182807 |
| Device Type | Power distribution unit - rack-mountable |
| Circuit Protection | Circuit breaker |
