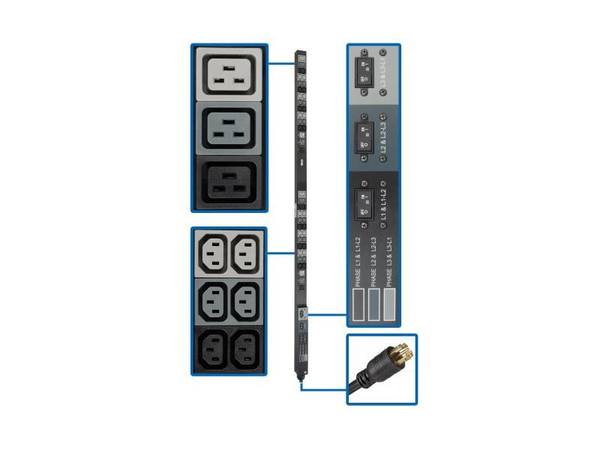

TRIPP LITE PDU 3PH 8.6KW 36 C13 6 C19 6 5-15/20R 0U 6702432
SKU
6702432
CA$1,828.32
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series 8.6kW 208/120V Three-Phase Basic PDU - 48 Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P Input, 6 ft. Cord, 70 in. 0U Rack - power distribution unit - 8.6 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 6 ft Rack Size: 0U Weight: 13.89 lbs Input Wiring: 3-phase Input Voltage: AC 120/208 V Output Voltage: AC 208 V Power Capacity: 8.6 kW Input Connectors: 1 x power NEMA L21-30R Output connectors: 36 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 12 A ¦ 6 x power NEMA 5-15/20R - 120 V 16 A Included Accessories: Cable retention brackets TAA Compliant: TAA Compliant Dimensions (WxDxH): 1.7 in x 2.2 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 6 ft - Power Device
Input Voltage: AC 120/208 V Frequency Provided: 50/60 Hz Input Wiring: 3-phase Input Connectors: 1 x power NEMA L21-30R Power Output Connectors Details: 36 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 12 A ¦ 6 x power NEMA 5-15/20R - 120 V 16 A Output Voltage: AC 208 V 50/60 Hz Max Electric Current: 30 A Power Capacity: 8.6 kW Circuit Protection: Circuit breaker - Miscellaneous
Included Accessories: Cable retention brackets Cables Included: Power cable 6 ft Rack Mounting Kit: Included Features: Metal housing, vertical orientation Compliant Standards: UL 60950-1, NOM, RoHS, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, UL 60950-1:2007 R10.14 TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 1.7 in Depth: 2.2 in Height: 70 in Weight: 13.89 lbs - Dimensions & Weight (Shipping)
Shipping Width: 10 in Shipping Depth: 77.2 in Shipping Height: 6 in Shipping Weight: 19.51 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDU3V6L2130 |
| MFG Part# | PDU3V6L2130 |
| UPC | 37332255686 |
| Device Type | Power distribution unit - rack-mountable |
| Circuit Protection | Circuit breaker |
