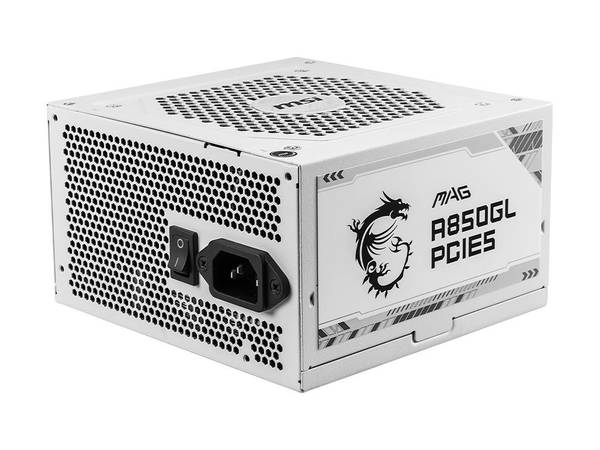

MSI MAG A850GL PCIE5 WHITE 7495789
SKU
7495789
CA$245.54
MSI MAG A850GL PCIE5 WHITE, USA, 850W, FULLY-MODULAR, 80 PLUS GOLD, BILINGUAL COLOR BOX, SOLID WOOD PALLET PACKING
Category: Power Supplies
- Primary Information
Product Description: MSI MAG A850GL PCIE5 WHITE - power supply - 850 Watt Device Type: Power supply - active Power Factor Correction (PFC) - internal Specification Compliance: ATX12V 3.0/ EPS12V 80 PLUS Certification: 80 PLUS Gold Weight: 6.39 lbs Input Voltage: AC 100-240 V Power Capacity: 850 Watt Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +12V - 70.5 A ¦ +5VSB - 2.5 A Output connectors: 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12+4 pin PCI Express 5.0 power 600 W ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 5 x 4 pin internal power Modular Cable Management: Yes Cooling System: 120 mm fan Color: White Dimensions (WxDxH): 5.9 in x 5.5 in x 3.4 in Manufacturer Warranty: 10-year warranty - General
Device Type: Power supply - active Power Factor Correction (PFC) - internal Specification Compliance: ATX12V 3.0/ EPS12V PSU Form Factor: ATX Color: White - Power Device
Input Voltage: AC 100-240 V Frequency Required: 47 - 63 Hz Power Output Connectors Details: 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12+4 pin PCI Express 5.0 power 600 W ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 5 x 4 pin internal power Power Capacity: 850 Watt Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +12V - 70.5 A ¦ +5VSB - 2.5 A Efficiency: 90% Modular Cable Management: Yes 80 PLUS Certification: 80 PLUS Gold - Miscellaneous
Cables Included: ATX power cable 2 ft ¦ 16-pin 12VHPWR power cable 2 ft ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 2 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 2.3 ft ¦ 2 x power 15 pin SATA cable ¦ 4 pin internal power cable Cooling System: 120 mm fan Features: Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, DC-DC technology, fluid dynamic bearing cooling fan, fully modular, LLC Full Bridge Topology - Manufacturer Warranty
Service & Support: Limited warranty - 10 years - Dimensions & Weight
Width: 5.9 in Depth: 5.5 in Height: 3.4 in Weight: 6.39 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121004
| BRANDS | MSI COMPUTER (USA) |
|---|---|
| UNSPSC | 39121004 |
| Part# | MSI-MAGA850GLPCIE5WT |
| MFG Part# | MAGA850GLPCIE5WT |
| UPC | 824142330258 |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| 80 PLUS Certification | 80 PLUS Gold |
| Color | White |
| Efficiency | 90% |
