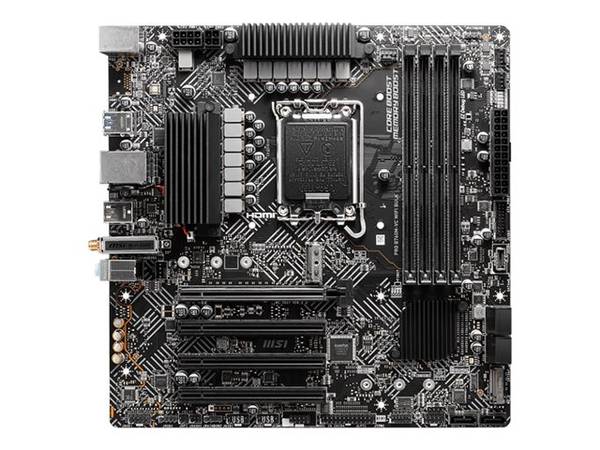

MSI PRO B760M DDR5 WIFI6E MATX MOTHERBOARD 7915465
SKU
7915465
Category: Motherboards
- Primary Information
Product Description: MSI PRO B760M-VC WIFI BULK - motherboard - micro ATX - LGA1700 Socket - B760 Product Type: Motherboard - micro ATX Chipset Type: Intel B760 Processor Socket: 1 x LGA1700 Socket Compatible Processors: (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) Max RAM Size: 256 GB RAM Supported: 4 DIMM slots - DDR5, non-ECC, unbuffered Storage Ports: 6 x SATA-600 (RAID), 2 x M.2 USB / FireWire Ports: 1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) Audio: HD Audio (8-channel) LAN: 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) - General
Product Type: Motherboard - micro ATX Chipset Type: Intel B760 Processor Socket: LGA1700 Socket Max Processors Qty: 1 Compatible Processors: (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) - Supported RAM
Max Size: 256 GB Technology: DDR5 Bus Clock: 4000 MHz (O.C.), 5200 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.) Supported RAM Integrity Check: Non-ECC Registered or Buffered: Unbuffered Features: Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 - Audio
Type: HD Audio (8-channel) Audio Codec: Realtek ALC897 Compliant Standards: High Definition Audio - LAN
Network Controller: Realtek RTL8125BG Network Interfaces: 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) - Expansion / Connectivity
Expansion Slots: 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 3 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) Storage Interfaces: SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 Interfaces: 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x antenna ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack Internal Interfaces: 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header Power Connectors: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector - Features
BIOS Features: M-Flash, UEFI BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.4 support - Miscellaneous
Included Accessories: IO shield, Wi-Fi antenna, m.2 screw / standoff sets Cables Included: 1 x Serial ATA cable Software Included: Drivers & utilities, MSI CPU-Z, MSI Center, AIDA64 Extreme - MSI Edition, Norton 360 Width: 9.6 in Depth: 9.6 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | MSI COMPUTER (USA) |
|---|---|
| UNSPSC | 43201513 |
| Part# | MSI-B760MVCWIFIBULK |
| MFG Part# | B760MVCWIFIBULK |
| UPC | 824142364543 |
| Product Type | Motherboard - micro ATX |
| Type | HD Audio (8-channel) |
| Network Controller | Realtek RTL8125BG |
