MSI X670E GAMING PLUS WIFI 7383830
SKU
7383830
Category: Motherboards
- Primary Information

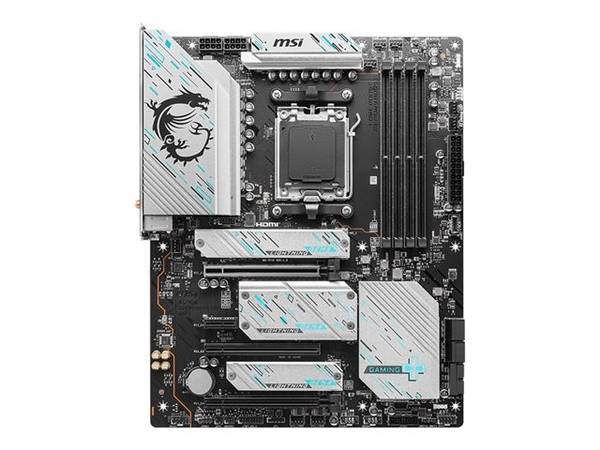

Product Description: MSI X670E GAMING PLUS WIFI - motherboard - ATX - Socket AM5 - AMD X670 Product Type: Motherboard - ATX Chipset Type: AMD X670 Processor Socket: 1 x Socket AM5 Compatible Processors: Ryzen (supports Ryzen 7000/8000/9000 Series) Max RAM Size: 256 GB RAM Supported: 4 DIMM slots - DDR5, non-ECC, unbuffered Storage Ports: 4 x SATA-600 (RAID), 4 x M.2 USB / FireWire Ports: 1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) Audio: HD Audio (8-channel) LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, 2.5 Gigabit Ethernet - General
Product Type: Motherboard - ATX Chipset Type: AMD X670 Processor Socket: Socket AM5 Max Processors Qty: 1 Compatible Processors: Ryzen (supports Ryzen 7000/8000/9000 Series) - Supported RAM
Max Size: 256 GB Technology: DDR5 Bus Clock: 4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.) Supported RAM Integrity Check: Non-ECC Registered or Buffered: Unbuffered Features: AMD EXPO technology, dual channel memory architecture - Audio
Type: HD Audio (8-channel) Audio Codec: Realtek ALC897 Compliant Standards: High Definition Audio - LAN
Network Controller: Realtek RTL8125BG Network Interfaces: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, 2.5 Gigabit Ethernet - Expansion / Connectivity
Expansion Slots: 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x4 ¦ 2 x PCIe 3.0 x1 ¦ 3 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) Storage Interfaces: SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 Interfaces: 1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x antenna Internal Interfaces: 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt - header Power Connectors: 24-pin main power connector, 2 x 8-pin ATX12V connectors - Features
BIOS Features: MSI ClickBIOS 5, M-Flash Hardware Features: Water Pump Header, EZ LED control, Debug LED, flash BIOS button, M.2 Shield FROZR, MSI Audio Boost, 14+2+1 Phase Power Design, Extended Heatsink Design, MSI Mystic Light, 2oz Copper PCB, 6 Layer PCB, AMD Precision Boost Overdrive (PBO), DIY Friendly Design, Frozr AI Cooling, MSI Core Boost, overvoltage protection, overcurrent protection, transient voltage suppressors, 80A Smart Power Stage, MSI Steel Armor - Miscellaneous
Included Accessories: Wi-Fi antenna, 3 x M.2 clips, M.2 plate screw, cable stickers Cables Included: 2 x Serial ATA cable Software Included: MSI Center, AIDA64 Extreme (60 days trial), Norton 360 Deluxe (60 days trial) Compliant Standards: DisplayPort 1.4 Width: 12 in Depth: 9.6 in Package Details: Box - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | MSI COMPUTER (USA) |
|---|---|
| UNSPSC | 43201513 |
| Part# | MSI-X670EGAMPLUSWIFI |
| MFG Part# | X670EGAMPLUSWIFI |
| UPC | 824142345986 |
| Product Type | Motherboard - ATX |
| Type | HD Audio (8-channel) |
| Network Controller | Realtek RTL8125BG |
