NETWORK CAMERA P3925-LRE 6703712
SKU
6703712
CA$1,444.69

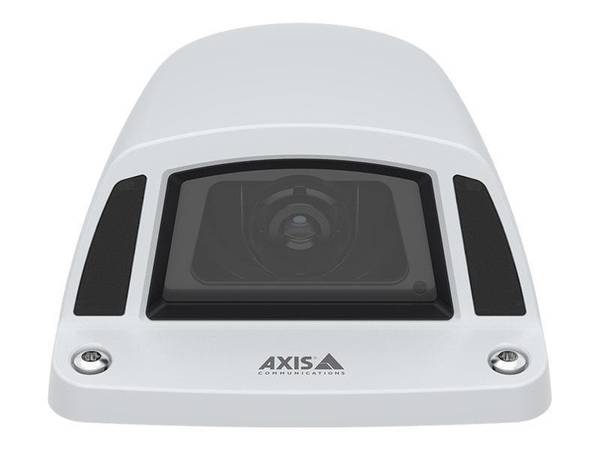

Compact streamlined exterior onboard camera for rolling stock and vehicles with male RJ-45 network connector. The HDTV 1080p camera is equipped with two 850 nm IR LEDs, removable IR-cut filter for day/night functionality and a 6 mm F1.9 lens in a rugged IP6K9K and IK10 rated metal casing. Multiple, individually configurable H.264, H.265 and Motion JPEG streams. Forensic WDR, Lightfinder technology, Axis Zipstream technology for reduced bandwidth and storage needs, microSD/microSDHC/microSDXC memory card slot for optional local video storage. Includes lens tool, L-key, and drill template.
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS P3925-LRE - network surveillance camera Device Type: Network surveillance camera - pan / tilt Dimensions (WxDxH): 4.6 in x 6.3 in x 2.5 in Weight: 27.16 oz Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 1920 x 1080 Frame Rate (max): 45 frames per second Motion Detection: Yes Video Modes: 1080p Optical Sensor Type: RGB CMOS - 1/2.9" Minimum Illumination: 0.07 lux - color - F1.9 - 30 IRE ¦ 0.14 lux - color - F1.9 - 50 IRE ¦ 0.02 lux - B&W - F1.9 - 30 IRE ¦ 0.04 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR Focal Length Control: Fixed focal Focal Length: 6 mm Lens Mounting: M12 mount Lens Iris: F/1.9 - fixed iris Panning Range (degree): -20 to +20 Tilting Range (degree): 0 to 15 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: PoE Class 3 Features: Sharpness control, white balance, progressive scanning, brightness control, contrast control, image mirror, Privacy Mask Function, Electronic Image Stabilizer (EIS), Lightfinder technology, digital PTZ function, password protection, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, Forensic WDR, IP address filtering, exposure zone, guard tour, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), defogging, compression Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -40 °F - 131 °F; 10 - 95% (non-condensing) relative humidity - General
Device Type: Network surveillance camera Connectivity Technology: Wired Width: 4.6 in Depth: 6.3 in Height: 2.5 in Weight: 27.16 oz - Camera
Type: Color - Day&Night - pan / tilt Digital Video Format: MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 Max Digital Video Resolution: 1920 x 1080 Motion Detection: Yes Video Modes: 1080p Exposure Range: 2 sec - 1/33500 sec Minimum Illumination: 0.07 lux - color - F1.9 - 30 IRE ¦ 0.14 lux - color - F1.9 - 50 IRE ¦ 0.02 lux - B&W - F1.9 - 30 IRE ¦ 0.04 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR Infrared LEDs: Yes Video Capture: 1920 x 1080 @ 30 fps ¦ 1280 x 960 @ 45 fps Still Image Capture Resolution: 1080p RAM: 1 GB Flash Memory: 512 MB Features: Sharpness control, white balance, progressive scanning, brightness control, contrast control, image mirror, Privacy Mask Function, Electronic Image Stabilizer (EIS), Lightfinder technology, digital PTZ function, password protection, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, Forensic WDR, IP address filtering, exposure zone, guard tour, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), defogging, compression - Image Sensor
Type: RGB CMOS 1/2.9" - Lens Construction
Type: M12 mount - fixed focal Focal Length: 6 mm Lens Iris: F/1.9 fixed iris Horizontal Field of View (degree): 56 Vertical Field of View (degree): 30 - Panning
Range (degree): -20 to +20 - Tilting
Range (degree): 0 to 15 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTT - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card - Miscellaneous
Included Accessories: Drill hole template, lens tool, Resistorx L-key, masking kit Compliant Standards: EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, FCC Part 15 B Class A, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, EN 50121-3-2, IS13252, IEC 62471, EN 50498, EN 45545-2, KN35, EN 50155, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, ISO 20653, IEEE 802.3af, IEEE 802.3at, IEC 60721-3-5 Class 5M3, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, IP6K9K, CAN/CSA C22.2 No. 60950-22, NIST SP500-267, EN 50155:2017 Class OT2/ST2, ICES-3(A)/NMB-3(A), UN ECE R118, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP67, ECE-R10 Rev.6 (E approval), IEC/EN 62262 IK10+ - Power
Power Requirements: PoE Class 3 - Software / System Requirements
Software Included: Windows decoder 1-user license - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 131 °F Relative Humidity (operating): 10 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02090-001 |
| MFG Part# | 02090-001 |
| UPC | 7331021072442 |
| Max Resolution | 1920 x 1080 |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Type | M12 mount - fixed focal |
| Still Image Capture Resolution | 1080p |
| Digital Video Format | AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 |
| Focal Length | 6 mm |
