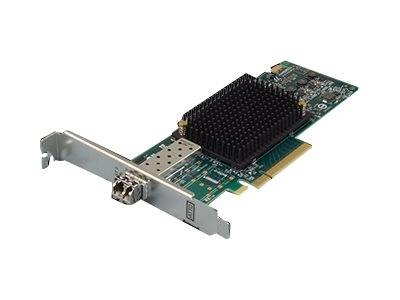

Product Description: | ATTO Celerity FC-321E - host bus adapter - PCIe 3.0 x8 - 32Gb Fibre Channel Gen 6 x 1 |
Device Type: | Host bus adapter |
Form Factor: | Plug-in card - low profile |
Interface (Bus) Type: | PCI Express 3.0 x8 |
PCI Specification Revision: | PCIe 3.0 |
Ports: | 32Gb Fibre Channel Gen 6 x 1 |
Dimensions (WxDxH): | 6.6 in x 2.7 in |
Data Link Protocol: | 32Gb Fibre Channel |
System Requirements: | Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Vista / XP / 7, Apple MacOS X 10.6 or later, Microsoft Windows Server 2008, VMware ESXi 5 |
Manufacturer Warranty: | 3-year warranty |
Device Type: | Host bus adapter |
Form Factor: | Plug-in card - low profile |
Interface (Bus) Type: | PCI Express 3.0 x8 |
PCI Specification Revision: | PCIe 3.0 |
Ports: | 32Gb Fibre Channel Gen 6 x 1 |
Connectivity Technology: | Wired |
Data Link Protocol: | 32Gb Fibre Channel |
Fibre Channel: | FC-FS, FCP, FC-PI-6 |
Status Indicators: | Port status, port transmission speed |
Features: | Full duplex capability, auto-negotiation, firmware upgradable, Advanced Data Streaming (ADS), Transparent (N_Port ID Virtualization - NPIV) mode support, Fabric-Device Management Interface (FDMI), Virtual Fabric mode |
Interfaces: | 1 x 32Gb Fibre Channel - LC - x 2 |
Included Accessories: | Low-profile bracket |
Compliant Standards: | FCC Class A certified, CSA, UL, TUV, cUL, EMC, RoHS, KCC, ICES, BSMI Class A, VCCI Class A, RCM, MSIP |
Power Consumption Operational: | 9.8 Watt |
Software Included: | ATTO ConfigTool |
OS Required: | Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Vista / XP / 7, Apple MacOS X 10.6 or later, Microsoft Windows Server 2008, VMware ESXi 5 |
Depth: | 6.6 in |
Height: | 2.7 in |
Service & Support: | Limited warranty - 3 years |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 131 °F |
Humidity Range Operating: | 10 - 90% (non-condensing) |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43201404 |
BRANDS | ATTO TECHNOLOGY |
---|---|
UNSPSC | 43201404 |
Part# | AOT-CTFC-321E-000 |
MFG Part# | CTFC-321E-000 |
UPC | 603175008743 |
Device Type | Host bus adapter |
Connectivity Technology | Wired |
Form Factor | Plug-in card - low profile |
Data Link Protocol | 32Gb Fibre Channel |
