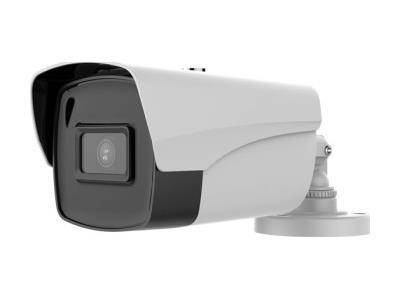

SMARTEYES 5MP BULLET TVI CAMERA 7293503
SKU
7293503
CA$56.10
AC326-FB4 - IR Bullet Camera - CMOS - 5MP - 2.8 mm - 30Frames per second
Category: PC & Network Cameras
- Primary Information
Product Description: Galaxy Platinum AC326-FB4 - surveillance camera - bullet Device Type: Surveillance camera - fixed - bullet - dust resistant / water resistant Dimensions (WxDxH): 3 in x 8.5 in x 3.1 in Weight: 11.64 oz Connectivity Technology: Wired Camera: Color - Day&Night - NTSC, PAL Max Resolution: 2560 x 1944 Frame Rate (max): 30 frames per second Optical Sensor Type: CMOS 5 MP Minimum Illumination: 0.01 lux - color - F1.2 - AGC on ¦ 0 lux - IR Focal Length Control: Fixed focal Focal Length: 2.8 mm Lens Mounting: M12 mount Focus Adjustment: Fixed focus Lens Iris: F/1.2 Panning Range (degree): 0 to 360 Tilting Range (degree): 0 to 180 Interfaces: CVBS, TVI, CVI Voltage: DC 12 V Features: Digital Wide Dynamic Range (D-WDR), ICR filter, manual 360° rotation, Automatic Gain Control (AGC), auto white balance, manual white balance, 2D digital noise reduction (DNR), Backlight Compensation (BLC), brightness control, Highlight Compensation (HLC), image mirror, sharpness control, Smart IR, metal housing, plastic housing Environmental Parameters (operating): -40 °F - 140 °F; 0 - 90% (non-condensing) relative humidity - General
Device Type: Surveillance camera Form Factor: Bullet Connectivity Technology: Wired Width: 3 in Depth: 8.5 in Height: 3.1 in Weight: 11.64 oz - Camera
Type: Color - Day&Night - fixed - dust resistant / water resistant Video Format: NTSC, PAL Digital Video Format: H.265+ Max Digital Video Resolution: 2560 x 1944 Exposure Range: 1/25 sec - 1/50000 sec Minimum Illumination: 0.01 lux - color - F1.2 - AGC on ¦ 0 lux - IR Infrared LEDs: Yes Infrared Distance: 131 ft Digital Video Capture Resolution: 2560 x 1944 Frame Rate (max): 30 frames per second Features: Digital Wide Dynamic Range (D-WDR), ICR filter, manual 360° rotation, Automatic Gain Control (AGC), auto white balance, manual white balance, 2D digital noise reduction (DNR), Backlight Compensation (BLC), brightness control, Highlight Compensation (HLC), image mirror, sharpness control, Smart IR, metal housing, plastic housing - Image Sensor
Type: 5 MP CMOS - Lens Construction
Type: M12 mount - fixed focal Focal Length: 2.8 mm Lens Iris: F/1.2 Focus Adjustment: Fixed focus Horizontal Field of View (degree): 85 Vertical Field of View (degree): 63 Diagonal Field of View (degree): 110 - Panning
Range (degree): 0 to 360 - Tilting
Range (degree): 0 to 180 - Interfaces
Video: CVBS, TVI, CVI - Expansion / Connectivity
Ports: Composite video/AHD/TVI/CVI/CVBS - Miscellaneous
Compliant Standards: IP67 - Power
Power Requirements: DC 12 V - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 46171610 |
| Part# | SMR-AC326-FB4 |
| MFG Part# | AC326-FB4 |
| Max Resolution | 2560 x 1944 |
| Device Type | Surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Bullet |
| Type | M12 mount - fixed focal |
| Focus Adjustment | Fixed focus |
| Digital Video Format | H.265+ |
| Digital Video Capture Resolution | 2560 x 1944 |
| Focal Length | 2.8 mm |
