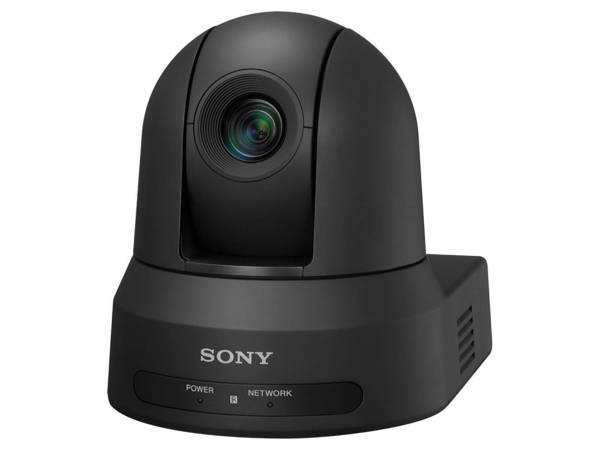

SONY 12X OPTICAL NDI READY 4K PTZ CAMERA -BLACK 7384892
SKU
7384892
Category: PC & Network Cameras
- Primary Information
Product Description: Sony SRG-X120 - conference camera - turret Device Type: Conference camera - pan / tilt / zoom - turret Audio: Yes: two-way audio capability Camera Mount Type: Ceiling mount Dimensions (WxDxH): 6.2 in x 7.9 in x 7 in Weight: 3.97 lbs Color: Black Connectivity Technology: Wired Camera: Color - Day&Night - 1700 TVL Optical Zoom: 12 x Max Resolution: 3840 x 2160 Frame Rate (max): 59.94 frames per second Video Modes: 2160/29.97p, 2160/25p, 2160/23.98p, 1080/59.54p, 1080/50p, 1080/30p, 1080/25p, 1080/23.98p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p Optical Sensor Type: Exmor R CMOS - 1/2.5" - 8.5 MP Minimum Illumination: 1.6 lux F2.0 - 50 IRE - shutter 1/30 sec Focal Length Control: Motorized zoom Focal Length: 4.4 mm - 52.8 mm Focus Adjustment: Automatic, manual (min distance 3.1 in) Lens Iris: F/2.0-3.7 Panning Range (degree): -170 to +170 Tilting Range (degree): -20 to +90 Interfaces: HDMI, 3G-SDI, LAN Control Interface: VISCA Voltage: DC 12 V / PoE Plus Features: 256 preset positions, 100 preset positions, Picture Freeze Preset, PTZ Motion Sync, Visibility Enhancer, Image Stabilization, image flip, Picture Setting File, Flicker Cancel, standby mode, remote standby, auto ICR Environmental Parameters (operating): 32 °F - 104 °F - General
Device Type: Conference camera Audio Support: Yes: two-way audio capability Audio Formats: AAC-LC Form Factor: Turret Camera Mount Type: Ceiling mount Connectivity Technology: Wired Width: 6.2 in Depth: 7.9 in Height: 7 in Weight: 3.97 lbs - Camera
Type: Color - Day&Night - pan / tilt / zoom Digital Video Format: H.264, H.265 Horizontal Resolution (TV Lines): 1700 Max Digital Video Resolution: 3840 x 2160 Video Modes: 2160/29.97p, 2160/25p, 2160/23.98p, 1080/59.54p, 1080/50p, 1080/30p, 1080/25p, 1080/23.98p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p Exposure Range: 1/1 sec - 1/10000 sec Minimum Illumination: 1.6 lux F2.0 - 50 IRE - shutter 1/30 sec Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 3840 x 2160, 720 x 576, 720 x 480, 640 x 360 Frame Rate (max): 59.94 frames per second Features: 256 preset positions, 100 preset positions, Picture Freeze Preset, PTZ Motion Sync, Visibility Enhancer, Image Stabilization, image flip, Picture Setting File, Flicker Cancel, standby mode, remote standby, auto ICR - Image Sensor
Type: 8.5 MP Exmor R CMOS 1/2.5" - Lens Construction
Type: Motorized zoom Optical Zoom: 12 x Focal Length: 4.4 mm - 52.8 mm Lens Iris: F/2.0-3.7 Focus Adjustment: Automatic, manual Min Focus Distance: 3.1 in Horizontal Field of View (degree): 70 - Panning
Range (degree): -170 to +170 Speed (degree/sec): Up to 300 - Tilting
Range (degree): -20 to +90 Speed (degree/sec): Up to 126 - Interfaces
Video: HDMI, 3G-SDI Network Interface: LAN Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP, RTCP, RTSP, UPnP Control Interface: VISCA - Expansion / Connectivity
Ports: Audio line-in/microphone - 3.5 mm jack ¦ HDMI output ¦ 3G-SDI ¦ Serial RS-422 ¦ LAN/power - RJ-45 - Miscellaneous
Included Accessories: Remote control, 2 ceiling mount brackets, wire rope, 9 screws M3x8, screw M2.6x6, HDMI cable fixing plate, power adapter Compliant Standards: IEEE 802.3at, IEC 60130-10, JEIDA Color: Black - Power
Power Requirements: DC 12 V / PoE Plus Power Device: Power adapter 25.5 Watt - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | SONY ELECTRONICS |
|---|---|
| UNSPSC | 46171610 |
| Part# | SON-SRGX120/4K |
| MFG Part# | SRGX120/4K |
| Max Resolution | 3840 x 2160 |
| Device Type | Conference camera |
| Optical Zoom | 12 x |
| Connectivity Technology | Wired |
| Form Factor | Turret |
| Type | Motorized zoom |
| Color | Black |
| Focus Adjustment | Automatic, manual |
| Digital Video Format | H.264, H.265 |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 3840 x 2160, 640 x 360, 720 x 480, 720 x 576 |
| Focal Length | 4.4 mm - 52.8 mm |
