SPECTR BASED 25GBE/100GBE 11842423
SKU
11842423
Category: Hubs & Switches
- Primary Information

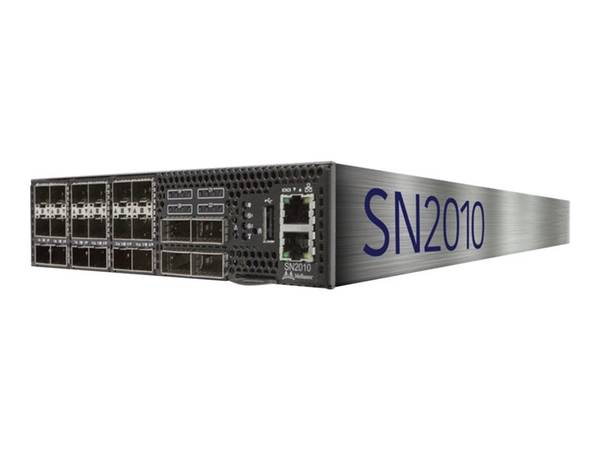

Product Description: Mellanox Spectrum SN2010 - switch - 22 ports - managed - rack-mountable Device Type: Switch - 22 ports - L3 - managed Enclosure Type: Front to back airflow rack-mountable 1U Subtype: 100 Gigabit Ethernet Ports: 18 x 25 Gigabit SFP28 + 4 x 100 Gigabit QSFP28 Performance: Switching capacity: 1.7 Tbps ¦ Latency: 300 µs ¦ Packet throughput: 2.52 Bpps Capacity: Multicast entries (Layer 2): 256000 ¦ Virtual interfaces (VLANs): 4000 ¦ Buffer capacity (MB): 16 ¦ 100GbE ports: 4 ¦ 40GbE ports: 4 ¦ 25GbE ports: 34 ¦ 10GbE ports: 34 Jumbo Frame Support: 9216 bytes Routing Protocol: BGP-4, IGMPv2, VRRP, OSPFv2, static IP routing, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, Bidirectional Forwarding Detection (BFD) Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, SSH-2, CLI Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, store and forward, IPv6 support, High Availability, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, IPv4 support, LLDP support, DHCP relay, LACP, e-mail notification, non blocking ports, PFC, MLAG, event notification, VLAN Double Tagging (Q-in-Q), ToR, PIM Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz Power: AC 120/230 V (50 - 60 Hz) Dimensions (WxDxH): 7.9 in x 20 in x 1.7 in Weight: 10.01 lbs Manufacturer Warranty: 1-year warranty - General
Device Type: Switch - 22 ports - L3 - managed Enclosure Type: Front to back airflow rack-mountable 1U Subtype: 100 Gigabit Ethernet Ports: 18 x 25 Gigabit SFP28 + 4 x 100 Gigabit QSFP28 Performance: Switching capacity: 1.7 Tbps ¦ Latency: 300 µs ¦ Packet throughput: 2.52 Bpps Capacity: Multicast entries (Layer 2): 256000 ¦ Virtual interfaces (VLANs): 4000 ¦ Buffer capacity (MB): 16 ¦ 100GbE ports: 4 ¦ 40GbE ports: 4 ¦ 25GbE ports: 34 ¦ 10GbE ports: 34 Jumbo Frame Support: 9216 bytes Routing Protocol: BGP-4, IGMPv2, VRRP, OSPFv2, static IP routing, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, Bidirectional Forwarding Detection (BFD) Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, SSH-2, CLI Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, store and forward, IPv6 support, High Availability, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, IPv4 support, LLDP support, DHCP relay, LACP, e-mail notification, non blocking ports, PFC, MLAG, event notification, VLAN Double Tagging (Q-in-Q), ToR, PIM Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz RAM: 8 GB Status Indicators: Link/activity - Expansion / Connectivity
Interfaces: 18 x 25Gbit LAN QSFP28 ¦ 1 x management (LAN) RJ-45 ¦ 1 x serial RJ-45 ¦ 4 x 100Gbit LAN QSFP28 ¦ 1 x USB mini-USB - Power
Power Device: Internal power supply Installed Qty: 2 Max Supported Qty: 2 Voltage Required: AC 120/230 V (50 - 60 Hz) Power Consumption Operational: 57 Watt - Miscellaneous
Rack Mounting Kit: Optional Compliant Standards: VCCI, CB, FCC, RoHS, ICES, cTUVus, RCM, CU - Software / System Requirements
Software Included: Cumulus Linux - Dimensions & Weight
Width: 7.9 in Depth: 20 in Height: 1.7 in Weight: 10.01 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 85% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | NVIDIA |
|---|---|
| UNSPSC | 43222612 |
| Part# | MNX-MSN2010-CB2RC-11842423 |
| MFG Part# | MSN2010-CB2RC |
| UPC | 7290108483956 |
| Device Type | Switch - 22 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Remote Management Protocol | CLI, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet |
