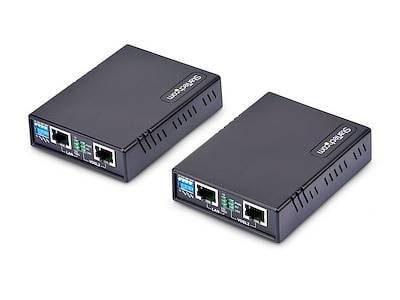

STARTECH VDSL2 ETHERNET EXTENDER KIT OVER SINGLE PAIR WIRE, UP TO 0.6MI (1KM) LONG RANGE LAN REPEATER OVER RJ11/CAT5E/CAT6, UP TO 300MBPS 7503953
SKU
7503953
CA$626.99
VDSL2 Ethernet Extender over UTP/single pair wire, phone line cable up to 0.6mi (1km); Extender capable of up to 300Mbps; DIP switch selectable settings; Works w/ 3rd party VDSL2 IP DSLAMs; 802.1Q VLAN tag transparency preserves VLAN-tagged traffic
Category: Repeaters & Transceivers
- Primary Information
Product Description: StarTech.com VDSL2 Ethernet Extender Kit, Network Extension Up to 0.6mi (1km), Long Range LAN Repeater over RJ11/CAT5e/CAT6 Cabling, Up to 300Mbps - Mounting Hardware Included (VDSL-LAN-EXTENDER-1G) - short-haul modem - 10Mb LAN, 100Mb LAN, 1GbE, Ethernet over VDSL2 - TAA Compliant Device Type: Short-haul modem Form Factor: External Cabling Type: 10/100/1000Base-T Data Transfer Rate: 300 Mbps Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, Ethernet over VDSL2 Transmission Medium: CAT 5e/6 Max Transfer Distance: 0.6 miles Power: AC 100-240 V Dimensions (WxDxH): 2.9 in x 3.8 in x 0.9 in Weight: 4.09 oz TAA Compliant: Yes Manufacturer Warranty: 2-year warranty - General
Device Type: Short-haul modem Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Cabling Type: 10/100/1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, Ethernet over VDSL2 Data Transfer Rate: 300 Mbps Max Transfer Distance: 0.6 miles Status Indicators: Power, status, link/activity/speed, master, VDSL, remote Features: Auto-uplink (auto MDI/MDI-X), surge protection, wall mountable, plastic housing, Automatic Media-Dependent Interface Crossover (MDIX), VDSL2 profiles 17a, 30a, 35b profiles support Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, ITU-T G.997.1, ITU-T G.993.5, ITU-T G.998.4, ITU-T G993.1, ITU-T G993.2 - Expansion / Connectivity
Interfaces: 2 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 - Miscellaneous
Included Accessories: 2 mounting brackets MTBF: 50,000 hours Compliant Standards: RoHS TAA Compliant: Yes - Power
Power Device: External power adapter Installed Qty: 2 Voltage Required: AC 100-240 V Power Consumption Operational: 3.8 Watt - Dimensions & Weight
Width: 2.9 in Depth: 3.8 in Height: 0.9 in Weight: 4.09 oz - Dimensions & Weight (Shipping)
Shipping Width: 5.9 in Shipping Depth: 7.1 in Shipping Height: 5.1 in Shipping Weight: 24.69 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43222608 |
| Part# | STC-VDSL-LAN-EXTENDER-1G |
| MFG Part# | VDSL-LAN-EXTENDER-1G |
| UPC | 65030899925 |
| Max Transfer Distance | 0.6 miles |
| Device Type | Short-haul modem |
| Connectivity Technology | Wired |
| Data Transfer Rate | 300 Mbps |
| Form Factor | External |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE, Ethernet over VDSL2 |
| Color | Black |
