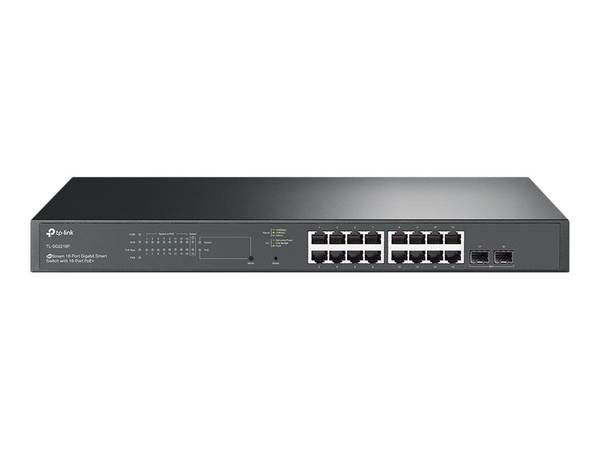

Product Description: | TP-Link JetStream TL-SG2218P V1.60 - switch - 18 ports - smart - rack-mountable |
Device Type: | Switch - 18 ports - smart |
Enclosure Type: | Rack-mountable |
Subtype: | Gigabit Ethernet |
Ports: | 16 x 10/100/1000 + 2 x SFP |
Performance: | Switching capacity: 36 Gbps ¦ Packet forwarding rate: 26.78 Mpps |
Capacity: | Packet buffer size: 4.1 Mbit ¦ Priority queues: 8 ¦ IP interfaces: 16 ¦ Static routes: 32 ¦ VLAN groups: up to 4000 ¦ ACL entries: 230 |
MAC Address Table Size: | 8K entries |
Jumbo Frame Support: | 9KB |
Routing Protocol: | Static IP routing, IGMP, MLD, STP, RSTP, MSTP |
Remote Management Protocol: | HTTP, HTTPS, DHCP, IPv4, IPv6, CLI, ICMP, Telnet, TFTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Syslog, SSH, SSH-2 |
Features: | ZTP, IPMB, ACL support, Port Security, DoS protection, DHCP snooping, MLD snooping, IGMP snooping, Storm Control, QoS, auto-negotiation, auto-uplink (auto MDI/MDI-X), 1 fan, CoS, DSCP prioritization, bandwidth control, rate limit, SP, WRR, ARP support, Link Aggregation, DLDP support, flow control, loopback detection, MSTP support, port mirroring, RSTP support, STP support, STP BPDU Filtering, STP BPDU port protection, LLDP-MED, VLAN support, Voice VLAN, AAA, MIB II, MIB, SNTP support, EEE, Cable Diagnostics Function |
Compliant Standards: | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Power: | AC 100-240 V (50/60 Hz) |
Dimensions (WxDxH): | 17.3 in x 7.1 in x 1.7 in |
System Requirements: | Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11, Novell NetWare, UNIX |
Manufacturer Warranty: | 5-year warranty |
Device Type: | Switch - 18 ports - smart |
Enclosure Type: | Rack-mountable |
Subtype: | Gigabit Ethernet |
Ports: | 16 x 10/100/1000 + 2 x SFP |
Performance: | Switching capacity: 36 Gbps ¦ Packet forwarding rate: 26.78 Mpps |
Capacity: | Packet buffer size: 4.1 Mbit ¦ Priority queues: 8 ¦ IP interfaces: 16 ¦ Static routes: 32 ¦ VLAN groups: up to 4000 ¦ ACL entries: 230 |
MAC Address Table Size: | 8K entries |
Jumbo Frame Support: | 9KB |
Routing Protocol: | Static IP routing, IGMP, MLD, STP, RSTP, MSTP |
Remote Management Protocol: | HTTP, HTTPS, DHCP, IPv4, IPv6, CLI, ICMP, Telnet, TFTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Syslog, SSH, SSH-2 |
Encryption Algorithm: | SSL 3.0, TLS 1.2 |
Authentication Method: | Secure Shell (SSH), Secure Shell v.2 (SSH2), RADIUS, PAP, EAP-MD5 |
Features: | ZTP, IPMB, ACL support, Port Security, DoS protection, DHCP snooping, MLD snooping, IGMP snooping, Storm Control, QoS, auto-negotiation, auto-uplink (auto MDI/MDI-X), 1 fan, CoS, DSCP prioritization, bandwidth control, rate limit, SP, WRR, ARP support, Link Aggregation, DLDP support, flow control, loopback detection, MSTP support, port mirroring, RSTP support, STP support, STP BPDU Filtering, STP BPDU port protection, LLDP-MED, VLAN support, Voice VLAN, AAA, MIB II, MIB, SNTP support, EEE, Cable Diagnostics Function |
Compliant Standards: | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Interfaces: | 16 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP |
Power Device: | Internal power supply |
Voltage Required: | AC 100-240 V (50/60 Hz) |
Included Accessories: | Rubber feet |
Rack Mounting Kit: | Included |
Compliant Standards: | FCC, RoHS |
OS Required: | Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11, Novell NetWare, UNIX |
Width: | 17.3 in |
Depth: | 7.1 in |
Height: | 1.7 in |
Service & Support: | Limited warranty - 5 years |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 122 °F |
Humidity Range Operating: | 10 - 90% RH (non-condensing) |
Min Storage Temperature: | -40 °F |
Max Storage Temperature: | 158 °F |
Humidity Range Storage: | 5 - 90% RH (non-condensing) |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43222612 |
BRANDS | TP-LINK |
---|---|
UNSPSC | 43222612 |
Part# | TPL-SG2218P |
MFG Part# | SG2218P |
UPC | 840030709500 |
Device Type | Switch - 18 ports - smart |
Enclosure Type | Rack-mountable |
Remote Management Protocol | CLI, DHCP, HTTP, HTTPS, ICMP, IPv4, IPv6, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP |
Encryption Algorithm | SSL 3.0, TLS 1.2 |
