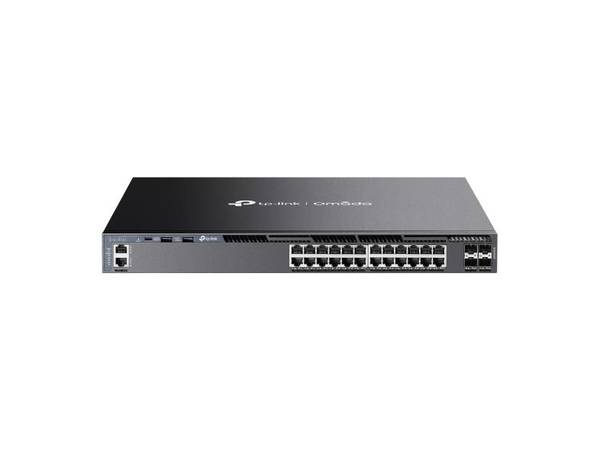

TP-LINK OMADA 24-PORT GIGABIT STACKABLE L3 MANAGED SWITCH WITH 4 10GE SFP+ SLOTS PORT 8014263
SKU
8014263
CA$1,099.99
OMADA 24-PORT GIGABIT STACKABLE L3 MANAGED SWITCH WITH 4 10GE SFP+ SLOTS PORT: 24 GIGABIT RJ45 PORTS, 4 10G SFP+ SLOTS, RJ45/TYPE C USB CONSOLE PORT, MANAGEMENT PORT, 2 USB2.0 PORTS SPEC: 1U 19-INCH RACK-MOUNTABLE STEEL CASE FEATURE: INTEGRATION WITH OMADA SDN CONTROLLER, STACKING, RIP, OSPF, VRRP, ECMP, PIM-DM, STATIC ROUTING, DHCP SERVER, DHCP RELAY, ERPS, RSPAN, QINQ, OAM, SFLOW, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP SNOOPING, 802.1P/DSCP, QOS, ACL, 802.1X, RADIUS/TACACS+ AUTHENTICATION, LACP, CLI, SNMP, DUAL IMAGE/CONFIGURATION, IPV6, DUAL REDUNDANT POWER SUPPLIES
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: SG6428X Form Factor: Rack-Mountable Connectivity Technology: Wired Data Transfer Rate: 10 Gbps Networking / Ports Qty: 33 Data Link Protocol: Gigabit Ethernet Networking Compliant Standards: 802.1q, 802.1p, 802.1ab Media Layer Supported: Layer 2, Layer 3 Power / Device Type: Power Supply Power / Installed Qty: 2 Uplink Port: 4 Max Power Consumption: 28.4 Watt Power / Voltage Required: 100-240 VAC, 50/60 Hz - Network
Power Over Ethernet (PoE) Support: None PoE Power Consumption: None MAC Address Table Size: 32 K Jumbo Frame Support: 9 KB Remote Management Protocol: RMON; CLI; SNMP Routing Protocol: RIP, OSPF, Static Routing Authentication Method: RADIUS, 802.1X, Mac base 10/100/1000BASE-T Ports: 24 SFP+ Ports: 4 Interfaces: 10/100/1000 Mbps RJ45, 10G SFP+, USB 2.0, RJ45 Console, USB Type-C Console, RJ45 Management - Interfaces / Ports
Interfaces: 10/100/1000 Mbps RJ45, 10G SFP+, USB 2.0, RJ45 Console, USB Type-C Console, RJ45 Management 10/100/1000BASE-T Ports: 24 SFP+ Ports: 4 - Dimensions&Miscellaneous
Width: 17.3 Inch Depth: 15.0 Inch Height: 1.7 Inch - Special Feature
Min Operating Temperature: 0 Celsius Max Operating Temperature: 45 Celsius Min Storage Temperature: -40 Celsius Max Storage Temperature: 70 Celsius COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TP-LINK |
|---|---|
| UNSPSC | 43222612 |
| Part# | TPL-SG6428X |
| MFG Part# | SG6428X |
| UPC | 840030705984 |
| Network Device Type | Switch |
| Power / Installed Qty | 2 |
| 10/100/1000BASE-T Ports | 24 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Form Factor | Rack-Mountable |
| Networking / Ports Qty | 33 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | CLI, RMON, SNMP |
