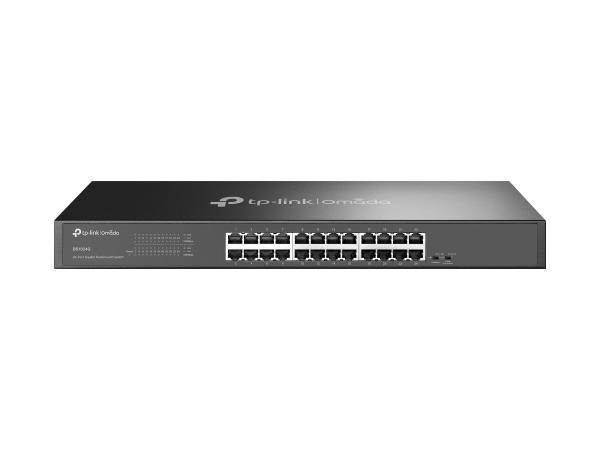

Network Device Type: | Switch |
Model: | DS1024G |
Form Factor: | Rack-Mountable |
Connectivity Technology: | Wired |
Data Transfer Rate: | 1 Gbps |
Networking / Ports Qty: | 24 |
Data Link Protocol: | Gigabit Ethernet |
Networking Compliant Standards: | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
Power / Device Type: | Power Supply |
Max Power Consumption: | 13.62 Watt |
Power / Voltage Required: | 100-240 VAC, 50/60 Hz |
Features: | Standard 19-inch rack-mountable steel case; Isolation Mode allows one-click client traffic separation for higher security and performance; Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping |
Power Over Ethernet (PoE) Support: | NONE |
PoE Power Consumption: | NONE |
MAC Address Table Size: | 8K |
Jumbo Frame Support: | 10 KB |
Interfaces: | 24× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
Interfaces: | 24× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
Width: | 17.3 Inch |
Depth: | 5.5 Inch |
Height: | 1.7 Inch |
Min Operating Temperature: | 0 CELSIUS |
Max Operating Temperature: | 40 CELSIUS |
Min Storage Temperature: | -40 CELSIUS |
Max Storage Temperature: | 70 CELSIUS |
RoHS: | Y |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43222612 |
BRANDS | TP-LINK |
---|---|
UNSPSC | 43222612 |
Part# | TPL-DS1024G |
MFG Part# | DS1024G |
UPC | 840030712425 |
Network Device Type | Switch |
Connectivity Technology | Wired |
Data Transfer Rate | 1 Gbps |
Form Factor | Rack-Mountable |
Networking / Ports Qty | 24 |
Data Link Protocol | Gigabit Ethernet |
Power / Device Type | Power Supply |
