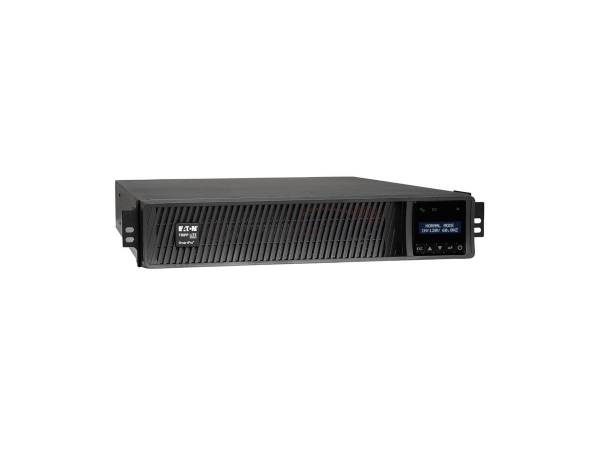

Product Description: | Eaton Tripp Lite Series SmartPro 1950VA 1950W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, ENERGY STAR V2.0, 2U Rack/Tower Battery Backup - UPS - 1950 Watt - 1950 VA |
Device Type: | UPS - rack-mountable |
Rack Size: | 19" - 2U |
Input Voltage: | AC 120 V |
Output Voltage: | AC 120 V ± 5% |
Power Capacity: | 1950 Watt / 1950 VA |
Input Connectors: | Power NEMA 5-20 |
Output connectors: | 4 x power NEMA 5-15/20 ¦ 4 x power NEMA 5-15 |
Battery: | Expandable |
Run Time (Up To): | 4.5 min at full load |
Networking: | RS-232, USB |
Dimensions (WxDxH): | 17.3 in x 23.7 in x 3.4 in |
Manufacturer Warranty: | 3-year warranty with product registration |
Device Type: | UPS - rack-mountable |
Height (Rack Units): | 2U |
Rack Size: | 19" |
UPS Technology: | Line interactive |
Input Voltage: | AC 120 V |
Input Voltage Range: | AC 83 - 145 V |
Input Voltage Margin: | + 14% / - 6% |
Frequency Required: | 60 Hz |
Input Connectors: | Power NEMA 5-20 |
Power Output Connectors Details: | 4 x power NEMA 5-15/20 ¦ 4 x power NEMA 5-15 |
Output Voltage: | AC 120 V ± 5% |
Power Capacity: | 1950 Watt / 1950 VA |
Output Waveform: | Sinewave |
Surge Suppression: | Yes |
Surge Energy Rating: | 570 Joules |
Efficiency: | 96% |
Type: | Expandable |
Voltage Provided: | 48 V |
Run Time (Up To): | 4.5 min at full load ¦ 12 min at half load |
Recharge Time: | 4.5 hours |
Remote Management Interface: | RS-232, USB |
Interfaces: | 1 x USB ¦ 1 x RS-232 |
Expansion Slots: | Expansion slot |
Cables Included: | Emergency power off cable ¦ Serial cable ¦ Power cable 10 ft |
Rack Mounting Kit: | Included |
Equipment Protection Value: | 250000 US Dollars |
Features: | Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), overvoltage protection, undervoltage protection, cold-start function, cooling fan, automatic shut down, hot-swappable batteries |
Compliant Standards: | CSA, NOM, UL 1778, FCC Part 15 A |
Software Included: | TrippLite PowerAlert |
Service & Support: | Limited warranty - 3 years |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 104 °F |
Humidity Range Operating: | 0 - 95% (non-condensing) |
Width: | 17.3 in |
Depth: | 23.7 in |
Height: | 3.4 in |
Shipping Width: | 21.7 in |
Shipping Depth: | 24.2 in |
Shipping Height: | 7.9 in |
Shipping Weight: | 68.78 lbs |
COO: | CHINA |
UNSPSC Code: | 39121011 |
BRANDS | TRIPP LITE |
---|---|
UNSPSC | 39121011 |
Part# | TRP-SMART2200RMXLN |
MFG Part# | SMART2200RMXLN |
UPC | 37332177926 |
Device Type | UPS - rack-mountable |
UPS Technology | Line interactive |
Surge Suppression | Yes |
Type | Expandable |
Efficiency | 96% |
