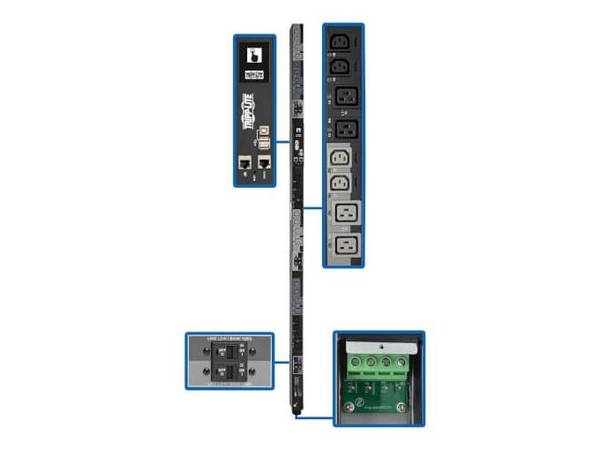

Product Description: | Tripp Lite 28.8kW 3-Phase Switched PDU w/LX Platform, 220/230/240V Output, Hardwire, Touchscreen LCD, 0U, TAA - power distribution unit - 28.8 kW - TAA Compliant |
Device Type: | Power distribution unit - rack-mountable |
Cord Length: | 6 ft |
Rack Size: | 0U |
Weight: | 13.01 lbs |
Input Wiring: | 3-phase |
Input Voltage: | AC 380/400/415 V |
Output Voltage: | AC 220/230/240 V |
Power Capacity: | 28.8 kW |
Input Connectors: | 1 x hardwire |
Output connectors: | 24 x power IEC 60320 C13 - 230 V 12 A ¦ 6 x power IEC 60320 C19 - 230 V 16 A |
Networking: | Ethernet 10/100, USB |
Remote Management Protocol: | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |
Included Accessories: | 24 plug-lock inserts |
TAA Compliant: | TAA Compliant |
Dimensions (WxDxH): | 2.2 in x 2.5 in x 70 in |
Manufacturer Warranty: | 2-year warranty |
Device Type: | Power distribution unit - rack-mountable |
Height (Rack Units): | 0U |
Cord Length: | 6 ft |
Input Voltage: | AC 380/400/415 V |
Frequency Provided: | 50/60 Hz |
Input Wiring: | 3-phase |
Input Connectors: | 1 x hardwire |
Power Output Connectors Details: | 24 x power IEC 60320 C13 - 230 V 12 A ¦ 6 x power IEC 60320 C19 - 230 V 16 A |
Output Voltage: | AC 220/230/240 V 50/60 Hz |
Max Electric Current: | 40 A |
Power Capacity: | 28.8 kW |
Circuit Protection: | Circuit breaker |
Remote Management Interface: | Ethernet 10/100, USB |
Remote Management Protocol: | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |
Interfaces: | 1 x management (Fast Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x management - RJ-45 |
Included Accessories: | 24 plug-lock inserts |
Cables Included: | Power cable - integrated - 6 ft ¦ Management cable - external |
Rack Mounting Kit: | Included |
Features: | LED indicator, vertical orientation, voltage monitoring, current meter, overload protection, digital power meter, email alerts support, firmware upgradable, touch screen LCD display, energy meter, switched |
Compliant Standards: | IEC60950-1:2005+A1:2009, UL 60950-1:2007, CAN/CSA-C22.2 No. 60950-1-07+A1:2011, NOM, FCC Class A certified, RoHS |
TAA Compliant: | Yes |
Service & Support: | Limited warranty - 2 years |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 122 °F |
Humidity Range Operating: | 5 - 95% (non-condensing) |
Width: | 2.2 in |
Depth: | 2.5 in |
Height: | 70 in |
Weight: | 13.01 lbs |
Shipping Width: | 6.9 in |
Shipping Depth: | 5.9 in |
Shipping Height: | 76.6 in |
Shipping Weight: | 17.13 lbs |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 39121017 |
BRANDS | TRIPP LITE |
---|---|
UNSPSC | 39121017 |
Part# | TRP-PDU3XEVSRHWA |
MFG Part# | PDU3XEVSRHWA |
UPC | 37332206886 |
Device Type | Power distribution unit - rack-mountable |
Circuit Protection | Circuit breaker |
Remote Management Protocol | HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet |
