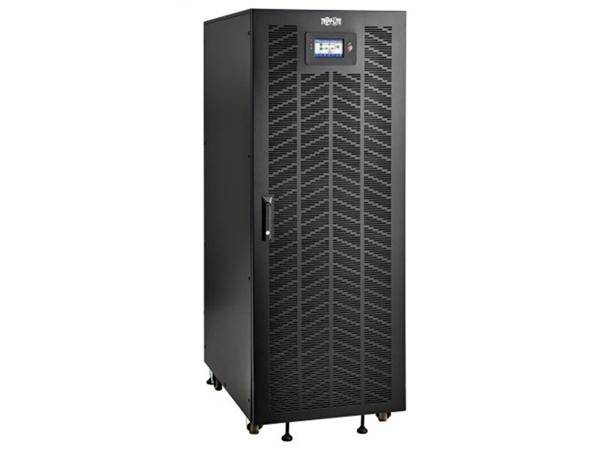

TRIPP LITE UPS 3-PHASE 208/220/120/127V 80KVA/KW DOUBLE-CONVERSION UNITY PF, EXTERNAL BATTERIES REQUIRED 6736323
SKU
6736323
CA$80,333.23
3-Phase 208/220/120/127V 80kVA/kW Double-Conversion UPS - Unity PF, External Batteries Required
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series 3-Phase 208/220/120/127V 80kVA/kW Double-Conversion UPS - Unity PF, External Batteries Required - UPS - 80 kW - 80000 VA Device Type: UPS - active Power Factor Correction (PFC) - external Input Wiring: 3-phase WYE (star) Input Voltage: AC 120/127/208/220 V Output Voltage: AC 120/127/208/220 V ± 1% Power Capacity: 80 kW / 80000 VA Input Connectors: Hardwire Output connectors: Hardwire Networking: USB, RS-232, serial Remote Management Protocol: SNMP Dimensions (WxDxH): 23.6 in x 33.5 in x 63 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - active Power Factor Correction (PFC) - external - Power Device
UPS Technology: On-line Input Voltage: AC 120/127/208/220 V Frequency Provided: 50/60 Hz Input Wiring: 3-phase WYE (star) Input Connectors: Hardwire Power Output Connectors Details: Hardwire Output Voltage: AC 120/127/208/220 V ± 1% - 50/60 Hz Power Capacity: 80 kW / 80000 VA Output Waveform: Sinewave Circuit Protection: Circuit breaker Efficiency: 98% Eco mode, 94% online mode Power Factor (PF): 0.99 Total Harmonic Distortion (THD): 3 % - Networking
Remote Management Interface: USB, RS-232, serial Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 1 x EPO (emergency power off) ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B - Miscellaneous
Cables Included: RS-232 cable 5 ft ¦ Parallel cable 5 ft ¦ USB cable 5 ft Features: Integrated electrical grounding, built-in 5" touch screen display, double conversion, LCD display, LED indicators, audible alarm, overvoltage correction, undervoltage correction, cooling fan, cold-start function Compliant Standards: CSA, FCC CFR47 Part 15 A, UL 1778, RETIE - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 95% (non-condensing) Sound Emission: 73.9 dBA - Dimensions & Weight
Width: 23.6 in Depth: 33.5 in Height: 63 in - Dimensions & Weight (Shipping)
Shipping Width: 28.1 in Shipping Depth: 38 in Shipping Height: 70.5 in Shipping Weight: 701.66 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-S3M80K |
| MFG Part# | S3M80K |
| UPC | 37332247896 |
| Device Type | UPS - active Power Factor Correction (PFC) - external |
| UPS Technology | On-line |
| Efficiency | 94% online mode, 98% Eco mode |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | SNMP |
