TRIPPLITE SMARTONLINE 120V 700VA 630W 7316406
SKU
7316406
CA$1,687.92

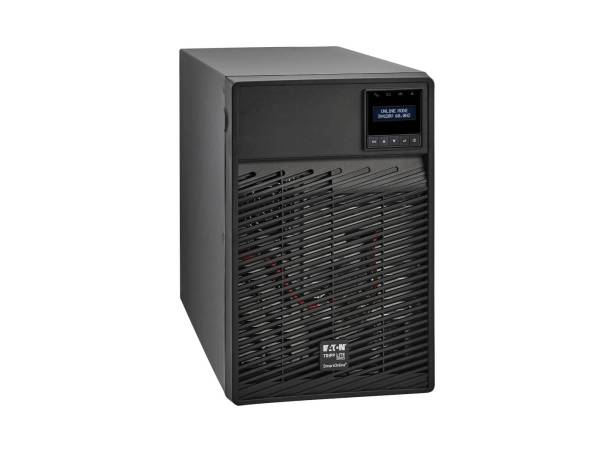

TRIPP LITE SERIES SMARTONLINE 120V 700VA 630W DOUBLE-CONVERSION UPS, 6 OUTLETS, NETWORK CARD OPTION, LCD, USB, DB9, TOWER
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartOnline 120V 700VA 630W Double-Conversion UPS, 6 Outlets, Network Card Option, LCD, USB, DB9, Tower Battery Backup - UPS - 630 Watt - 700 VA - VRLA Device Type: UPS - external Weight: 25.35 lbs Input Voltage: AC 100/110/120/127 V Output Voltage: AC 100/110/120 V ± 2% Power Capacity: 630 Watt / 700 VA Input Connectors: 1 x power NEMA 5-15R Output connectors: 6 x power NEMA 5-15 Battery: Valve regulated lead-acid (VRLA) Run Time (Up To): 5.9 min at full load Networking: RS-232, USB Remote Management Protocol: SNMP Dimensions (WxDxH): 6.3 in x 13.9 in x 9.9 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - external - Power Device
UPS Technology: On-line Input Voltage: AC 100/110/120/127 V Frequency Provided: 50/60 Hz Input Connectors: 1 x power NEMA 5-15R Power Output Connectors Details: 6 x power NEMA 5-15 Output Voltage: AC 100/110/120 V ± 2% - 50/60 Hz Max Electric Current: 6.5 A Power Capacity: 630 Watt / 700 VA Dataline Surge Protection: Phone line - 1 input line / 1 output line Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 190 Joules Efficiency: 89.84% at 100% Load Power Factor (PF): 0.9 - Battery
Technology: Valve regulated lead-acid (VRLA) Voltage Provided: 24 V Run Time (Up To): 5.9 min at full load ¦ 16.9 min at half load Transfer Time: 0 ms - Networking
Remote Management Interface: RS-232, USB Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) - RJ-11 Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable 8 ft ¦ USB cable - external ¦ Serial cable - external Equipment Protection Value: 250000 US Dollars Features: Metal housing, surge protection, noise protection, replaceable battery, cold-start function, LCD display, energy saving green topology, double conversion, cooling fan, LED indicators, audible alarm, power failure alarm, crest factor meter Compliant Standards: cUL, FCC, REACH, RoHS - Software / System Requirements
Software Included: TrippLite PowerAlert - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 96% (non-condensing) Sound Emission: 51 dBA - Dimensions & Weight
Width: 6.3 in Depth: 13.9 in Height: 9.9 in Weight: 25.35 lbs - Dimensions & Weight (Shipping)
Shipping Width: 11.7 in Shipping Depth: 22.4 in Shipping Height: 14.9 in Shipping Weight: 26.9 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU700XLCD |
| MFG Part# | SU700XLCD |
| UPC | 37332279699 |
| Device Type | UPS - external |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Efficiency | 89.84% at 100% Load |
| Remote Management Protocol | SNMP |
