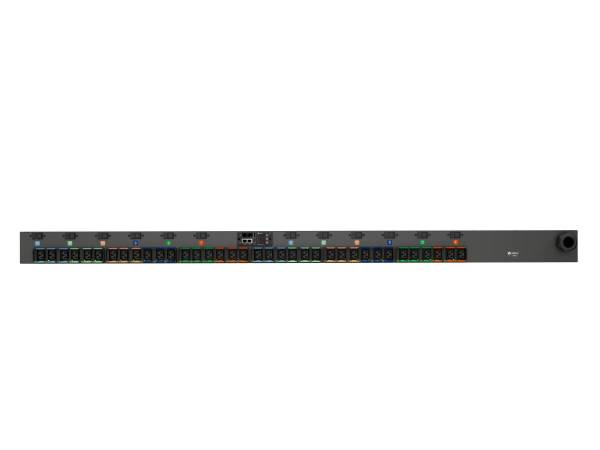

VERTIV 0U, 230/400V WYE, 60A, 3P+N+E (IP67), (36) COMBINATION C13/C19, SWITCHED OUTLET LEVEL MONITORING EC 7439711
SKU
7439711
CA$8,299.00
0U, 230/400V WYE, 60A, 3P+N+E (IP67), (36) Combination C13/C19, Switched Outlet Level Monitoring EC
Category: Power Distribution Units
- Primary Information
Product Description: Geist Switched Outlet Level Monitoring MNU3EPB1-36CF13-6PS56D0A10-S - power distribution unit - 34.5 kW - TAA Compliant Device Type: Power distribution unit Input Wiring: 3-phase WYE Input Voltage: AC 240/415 V Output Voltage: AC 240 V Power Capacity: 34.5 kW Input Connectors: 1 x power IEC 60309 3P+N+E Output connectors: 36 x power IEC 60320 C13/C19 Networking: RS-232, USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS, Syslog, Modbus TCP Color: Black powder coat TAA Compliant: TAA Compliant Dimensions (WxDxH): 3 in x 3.8 in x 66.3 in Manufacturer Warranty: 5-year warranty - General
Device Type: Power distribution unit Color: Black powder coat - Power Device
Input Voltage: AC 240/415 V Input Voltage Range: AC 200 - 240 / 346 - 415 V Input Wiring: 3-phase WYE Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC 60309 3P+N+E Power Output Connectors Details: 36 x power IEC 60320 C13/C19 Output Voltage: AC 240 V Max Electric Current: 60 A Power Capacity: 34.5 kW Circuit Protection: Circuit breaker - Networking
Remote Management Interface: RS-232, USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS, Syslog, Modbus TCP - Expansion / Connectivity
Interfaces: 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x sensor ¦ 1 x RS-232 - RJ-45 ¦ 1 x USB - Miscellaneous
Features: Vertical orientation, LED display, circuit/breaker current monitoring, IP reset button, breaker/switch combination, hard reboot button, scrolling/rotatable digital display, 12 x 20A single pole magnetic breakers Compliant Standards: UL, RoHS, FCC Part 15 A, UL 62368-1, C-UL TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Max Operating Temperature: 140 °F - Dimensions & Weight
Width: 3 in Depth: 3.8 in Height: 66.3 in - Dimensions & Weight (Shipping)
Shipping Weight: 22 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | VERTIV |
|---|---|
| UNSPSC | 39121017 |
| Part# | GTM-VP7N6013 |
| MFG Part# | VP7N6013 |
| Device Type | Power distribution unit |
| Color | Black powder coat |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, JSON, LDAP, Modbus TCP, NTP, RADIUS, RSTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, TACACS+ |
