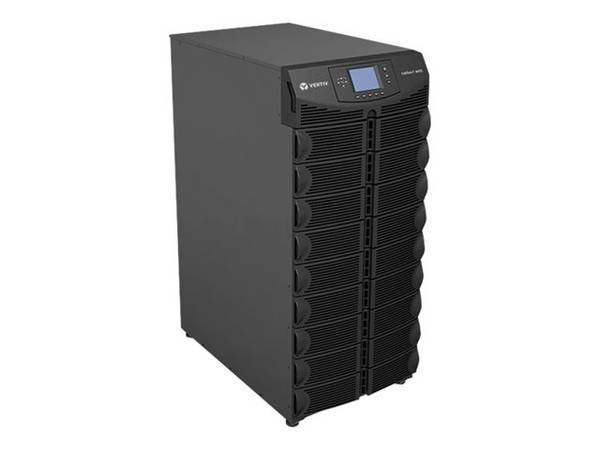

VERTIV APS 5KVA SCALABLE TO 15KVA N+1, 5M - 5KVA/4.5KW LLG WITH TRANSFORMER 208/120V OUT, 5 MIN 11903383

SKU
11903383
CA$30,249.00
APS 5kVA scalable to 15kVA N+1, 5M - 5kVA/4.5kW LLG with transformer 208/120V out, 5 MIN





buy now pay later
  • Primary Information
    Product Description: Liebert APS AS3 Series - UPS - 4.5 kW - 5000 VA
    Device Type: UPS - external
    Weight: 794.98 lbs
    Input Wiring: 1-phase
    Input Voltage: AC 200/208/220/230/240 V
    Output Voltage: AC 100/110/115/120/173/190/199/200/208/220/230/240 V ± 3%
    Power Capacity: 4.5 kW / 5000 VA
    Power Redundancy: Optional
    Input Connectors: 1 x hardwire 3-wire
    Output connectors: 1 x hardwire
    Battery: Expandable
    Run Time (Up To): 5 min at full load
    Networking: Ethernet 10/100, RS-485
    Remote Management Protocol: SNMP, Modbus
    Dimensions (WxDxH): 17.3 in x 31.5 in x 41.7 in
    Manufacturer Warranty: 2-year warranty
  • General
    Device Type: UPS - external
  • Power Device
    UPS Technology: On-line
    Supported Power Modules Qty: 12
    Power Redundancy: Optional
    Power Redundancy Scheme: N+1 (with optional power supply)
    Input Voltage: AC 200/208/220/230/240 V
    Frequency Provided: 50/60 Hz
    Input Wiring: 1-phase
    Frequency Required: 40 - 70 Hz
    Input Connectors: 1 x hardwire 3-wire
    Power Output Connectors Details: 1 x hardwire
    Output Voltage: AC 100/110/115/120/173/190/199/200/208/220/230/240 V ± 3% - 50/60 Hz
    Power Capacity: 4.5 kW / 5000 VA
    Efficiency: 89.9%
    Power Factor (PF): 0.99
  • Battery
    Type: Expandable
    Run Time (Up To): 5 min at full load ¦ 14 min at half load
  • Networking
    Remote Management Interface: Ethernet 10/100, RS-485
    Remote Management Protocol: SNMP, Modbus
  • Expansion / Connectivity
    Interfaces: 1 x management (Fast Ethernet) ¦ 2 x management (RS-485)
    Expansion Slots: 3 (total) / 2 (free) x Liebert IntelliSlot
  • Miscellaneous
    Features: Casters, LCD display, hot-swappable batteries, FlexPower Technology, double conversion, hot-swappable UPS power module
    Compliant Standards: CISPR 22 Class A, IEC 61000-4-2, UL 1778, EN 61000-4-2, CSA C22.2 No. 107.1, IEC 62040-2, WEEE, FCC Part 15 A, REACH, EN 62040-2, RoHS2, EN 62040-1:2008, IEC 62040-1:2008, AS 62040-1, AS 62040-2
  • Manufacturer Warranty
    Service & Support: Limited warranty - 2 years
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 0 - 95% (non-condensing)
  • Dimensions & Weight
    Width: 17.3 in
    Depth: 31.5 in
    Height: 41.7 in
    Weight: 794.98 lbs
  • Dimensions & Weight (Shipping)
    Shipping Weight: 834.88 lbs
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 39121011
BRANDSVERTIV
UNSPSC39121011
Part#GTM-AS3A0NCUGNNXLKB
MFG Part#AS3A0NCUGNNXLKB
Device TypeUPS - external
UPS TechnologyOn-line
TypeExpandable
Efficiency89.9%
Remote Management ProtocolModbus, SNMP
