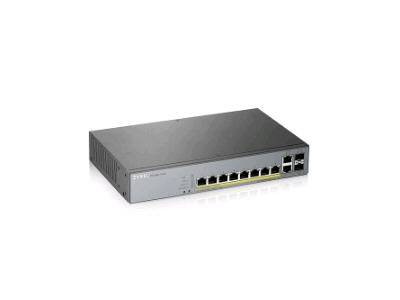

Product Description: | Zyxel GS1350 Series GS1350-12HP - switch - 8 ports - smart - rack-mountable |
Device Type: | Switch - 8 ports - smart |
Enclosure Type: | Rack-mountable |
Subtype: | Gigabit Ethernet |
Ports: | 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 2 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE): | PoE+ |
PoE Budget: | 130 W |
Performance: | Switching capacity: 24 Gbps ¦ Forwarding performance: 17.8 Mpps |
Capacity: | VLANs supported: 256 |
MAC Address Table Size: | 8K entries |
Routing Protocol: | IGMPv2, IGMP, IGMPv3 |
Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI, NTP, IPv6 |
Features: | Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, MAC address filtering, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, WFQ, STP support, RSTP support, DHCP snooping, reset button, IPv4 support, LLDP support, DHCP relay, LACP, Port Security, SNMP trap, DHCP client, MIB, dual firmware images, SPQ, port isolation, broadcast storm protection, security lock slot (cable lock sold separately), 4KV ESD Protector, 525KB packet buffer, DSCP support, ICMP, Loop Guard, Voice VLAN, HQoS, LLDP-MED, ingress rate limiting, EEE, MAC based VLAN, port-based VLAN, egress rate limiting, Unknown Storm Control, VLAN trunking, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), MAC freeze, PoE scheduling |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Power: | AC 100-240 V (50/60 Hz) |
Dimensions (WxDxH): | 10.5 in x 6.4 in x 1.7 in |
Weight: | 3.59 lbs |
Manufacturer Warranty: | Limited lifetime warranty |
Device Type: | Switch - 8 ports - smart |
Enclosure Type: | Desktop, rack-mountable |
Subtype: | Gigabit Ethernet |
Ports: | 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 2 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE): | PoE+ |
PoE Budget: | 130 W |
Performance: | Switching capacity: 24 Gbps ¦ Forwarding performance: 17.8 Mpps |
Capacity: | VLANs supported: 256 |
MAC Address Table Size: | 8K entries |
Routing Protocol: | IGMPv2, IGMP, IGMPv3 |
Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI, NTP, IPv6 |
Encryption Algorithm: | SSL, SHA-2 |
Authentication Method: | RADIUS |
Features: | Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, MAC address filtering, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, WFQ, STP support, RSTP support, DHCP snooping, reset button, IPv4 support, LLDP support, DHCP relay, LACP, Port Security, SNMP trap, DHCP client, MIB, dual firmware images, SPQ, port isolation, broadcast storm protection, security lock slot (cable lock sold separately), 4KV ESD Protector, 525KB packet buffer, DSCP support, ICMP, Loop Guard, Voice VLAN, HQoS, LLDP-MED, ingress rate limiting, EEE, MAC based VLAN, port-based VLAN, egress rate limiting, Unknown Storm Control, VLAN trunking, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), MAC freeze, PoE scheduling |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Built-in Devices: | LED panel |
Status Indicators: | PoE |
Interfaces: | 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T RJ-45 uplink ¦ 2 x Gigabit LAN SFP uplink |
Power Device: | Internal power supply |
Voltage Required: | AC 100-240 V (50/60 Hz) |
Included Accessories: | Rack mount kit |
Rack Mounting Kit: | Included |
MTBF: | 1,065,025.45 hours |
Compliant Standards: | EMC, FCC, RoHS, BSMI CNS 13438, C-Tick Class A, LVD, BSMI CNS 14336-1, EN 62368-1 |
Width: | 10.5 in |
Depth: | 6.4 in |
Height: | 1.7 in |
Weight: | 3.59 lbs |
Service & Support: | Limited warranty - lifetime |
Min Operating Temperature: | -4 °F |
Max Operating Temperature: | 122 °F |
Humidity Range Operating: | 5 - 95% (non-condensing) |
Min Storage Temperature: | -40 °F |
Max Storage Temperature: | 158 °F |
Humidity Range Storage: | 5 - 95% (non-condensing) |
COO: | CHINA |
UNSPSC Code: | 43222612 |
BRANDS | ZYXEL COMMUNICATIONS |
---|---|
UNSPSC | 43222612 |
Part# | ZYX-GS1350-12HP |
MFG Part# | GS1350-12HP |
UPC | 760559126339 |
Device Type | Switch - 8 ports - smart |
Enclosure Type | Desktop, rack-mountable |
Remote Management Protocol | CLI, HTTP, HTTPS, IPv6, NTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet |
Encryption Algorithm | SHA-2, SSL |
