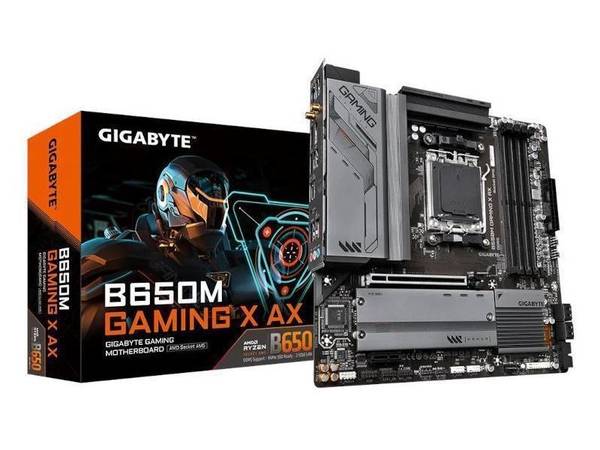

GIGA-BYTE GTB B650 GAMIMG X AX AMD B650 AM5 LGA1718 ATX 7332458
SKU
7332458
Category: Motherboards
- Dimensions&Miscellaneous
Model: B650 GAMING X AX Width: 30.5 Cm Depth: 24.4 Cm - Primary Information
Mainboard Form Factor: ATX Mainboard / Chipset Type: AMD B650 Compatible Processors: AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors QuickPath Interconnect (QPI): Not Included Audio Output: ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 - Processor
Processor / Max Supported Qty: Not Included Processor / Socket Type: Socket AM5 - Memory
RAM / Technology: DDR5 Data Integrity Check: Non-ECC RAM / Max Supported Size: 192 GB - Storage
Controller Interface Type: M.2 - Expansion
Expansion Slots Total (Free): 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Interfaces & Connections: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | GIGA-BYTE |
|---|---|
| UNSPSC | 43201513 |
| Part# | GIG-B650 GAMING X AX |
| MFG Part# | B650 GAMING X AX |
| UPC | 889523034163 |
| Mainboard / Chipset Type | AMD B650 |
| Processor / Max Supported Qty | Not Included |
| RAM / Technology | DDR5 |
| Processor / Socket Type | Socket AM5 |
| Audio Output | ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 |
| Data Integrity Check | Non-ECC |
| Mainboard Form Factor | ATX |
