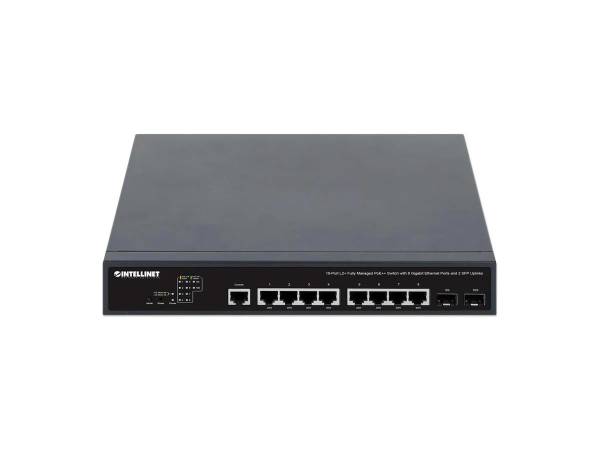

INTRACOM 10-PORT L2+ FULLY MANAGED POE++ SWITCH WITH 8 GIGABIT ETHERNET PORTS AND 2 SFP UPLINKS 8003947
SKU
8003947
CA$465.72
Intellinet Network Solutions 10-Port L2+ Fully Managed PoE++ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks IEEE 802.3bt (4PPoE) Compliant (2 x 90 W Ports, 6 x 30 W Ports), 242 W PoE Power Budget, Layer 2+/Layer 3 Lite, Two 1G SFP Open Slots, Desktop Format, Includes Optional 19in Rackmount Brackets (IPS-10GM02-242W)
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: IPS-10GM02-242W Form Factor: 1RU Connectivity Technology: Wired Data Transfer Rate: 1 Gbps Networking / Ports Qty: 11 Data Link Protocol: Gigabit Ethernet Status Indicators: LED Indicators Networking Compliant Standards: IEEE 802.3BT, 802.1p, 802.1q, 802.3ad, 802.3z, 802.3x Media Layer Supported: LAYER 2+/LAYER 3 Power / Device Type: Power Supply Uplink Port: 2 SFP UPLINKS Max Power Consumption: 252 Watt Power / Voltage Required: 100 - 240 VAC MTBF: 392650 hours Features: Provides up to eight PoE network devices with power and data; Two 1G small form-factor pluggable (SFP) module slots; Domotz compatible for cloud management; Supports 802.1Q VLAN (tag-based and port-based); Supports link aggregation (trunking) - Network
Power Over Ethernet (PoE) Support: YES PoE Power Consumption: 242W MAC Address Table Size: 8k Jumbo Frame Support: 9216 Bytes Remote Management Protocol: SSH; DHCP; HTTPS; TFTP; HTTP; Telnet; SNMP Routing Protocol: IPv4/IPv6 Authentication Method: TACACS+, RADIUS 10/100/1000BASE-T Ports: 8 SFP Ports: 2 Interfaces: Eight 10/100/1000 Mbps RJ45 PoE-enabled ports; Two Gigabit SFP slots; One console port - Interfaces / Ports
Interfaces: Eight 10/100/1000 Mbps RJ45 PoE-enabled ports; Two Gigabit SFP slots; One console port 10/100/1000BASE-T Ports: 8 SFP Ports: 2 - Dimensions&Miscellaneous
What's Included: 10-Port L2+ Fully Managed PoE++ Switch with 8 Gigabit Ports and 2 SFP Uplinks; Power cable; Instructions; 19" rackmount brackets Width: 11.02 Inch Depth: 9.06 Inch Height: 1.73 Inch Weight: 2.5 Kg - Service&Support
Service & Support Type: Three-year warranty - Special Feature
Min Operating Temperature: 0 Celsius Max Operating Temperature: 45 Celsius Min Storage Temperature: -40 Celsius Max Storage Temperature: 70 Celsius COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | MANHATTAN/INTELLINET |
|---|---|
| UNSPSC | 43222612 |
| Part# | ITR-562003 |
| MFG Part# | 562003 |
| UPC | 766623562003 |
| Network Device Type | Switch |
| 10/100/1000BASE-T Ports | 8 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | 1RU |
| Networking / Ports Qty | 11 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | DHCP, HTTP, HTTPS, SNMP, SSH, Telnet, TFTP |
