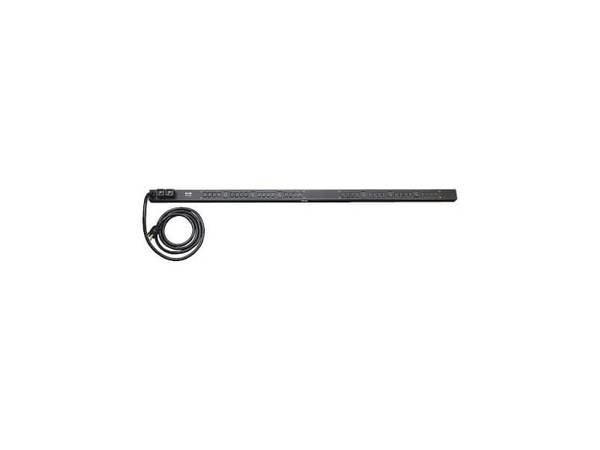

TRIPP LITE 280 VOLTS 30(2X15) AMPS (32) C-13/(6)C19 4515317
SKU
4515317
CA$863.80
TRIPP LITE PDUV30HV - 5.5kW Single-Phase 208/230V Basic PDU - Output Connector(s): 38 Outlets (32 C13 and 6 C19) - Input Connector(s): NEMA L6-30P - 10 ft. (3.05 m) Cord - 0U Vertical - Metal - 63.750 x 3.500 x 2.250 - 3.63 kg - 5-year limited warranty
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series - power distribution unit - vertical - 5.5 kW Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 8 lbs Input Wiring: 1-phase Input Voltage: AC 208 - 230 V Output Voltage: AC 208 - 230 V Power Capacity: 5.5 kW Input Connectors: 1 x power NEMA L6-30P Output connectors: 32 x power IEC 60320 C13 12 A ¦ 6 x power IEC 60320 C19 16 A Included Accessories: 38 plug-lock inserts Dimensions (WxDxH): 2.2 in x 3.7 in x 63.8 in Manufacturer Warranty: 5-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft - Power Device
Input Voltage: AC 208 - 230 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 1 x power NEMA L6-30P Power Output Connectors Details: 32 x power IEC 60320 C13 12 A ¦ 6 x power IEC 60320 C19 16 A Output Voltage: AC 208 - 230 V 50/60 Hz Max Electric Current: 30 A Power Capacity: 5.5 kW Circuit Protection: Circuit breaker - Miscellaneous
Included Accessories: 38 plug-lock inserts Cables Included: Power cable (NEMA L6-30P) - integrated - 10 ft Rack Mounting Kit: Included Features: Vertical orientation, under counter mountable, wall mountable, metal housing Compliant Standards: CAN/CSA-C22.2 No. 62368-1, NOM, UL 62368-1, RoHS - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% RH (non-condensing) - Dimensions & Weight
Width: 2.2 in Depth: 3.7 in Height: 63.8 in Weight: 8 lbs - Dimensions & Weight (Shipping)
Shipping Width: 3 in Shipping Depth: 65.5 in Shipping Height: 5 in Shipping Weight: 10.8 lbs - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUV30HV |
| MFG Part# | PDUV30HV |
| UPC | 37332138910 |
| Device Type | Power distribution unit - rack-mountable |
| Circuit Protection | Circuit breaker |
